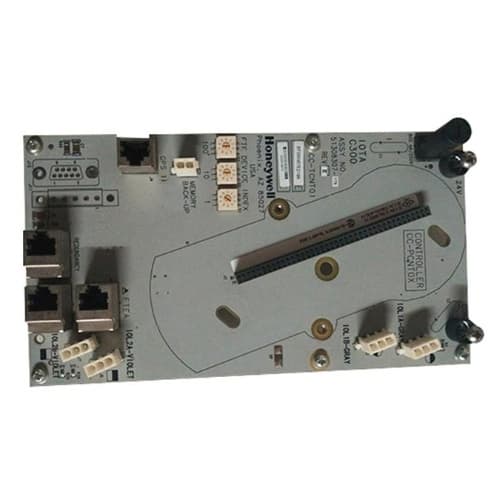

Honeywell redundant analog Output Module/ Module đầu ra backplane CC-TAOX11
Honeywell module
Honeywell module CC-TAOX11 PWA, AO IOTA RED 16 12IN CE CC
| Manufacturer’s Declared Parameters | |||
| Input / Output Model | CC-PAOH01 – High-Level Analog Output with HART
CU-PAOH01 – High-Level Analog Output with HART |
||
| IOTA Models | CC-TAOX01
CU-TAOX01 |
Non Redundant | 6” |
| CC-TAOX11
CU-TAOX11 |
Redundant | 12” | |
| Output Type | 4-20 mA | ||
| Output Channels | 16 | ||
| Output Ripple | < 100 mV peak-to-peak at power line frequency, across 250 Ω load | ||
| Output Temperature Drift
Output Readback Accuracy |
0.005% of Full Scale/°C
±4% of Full Scale |
||
| Output Current Linearity | ± 0.05% of Full Scale nominal | ||
| Resolution
Calibrated Accuracy |
± 0.05% of Full Scale
± 0.35% of Full Scale (25oC) including linearity |
||
| Directly Settable Output Current Range | 0 mA, 2.9 mA to 21.1 mA | ||
| Maximum Resistive Load
(24 V supply = 22 VDC through 28 VDC) |
800 ohms | ||
| Maximum Output Compliant Voltage
(24 V supply = 22 VDC through 28 VDC) |
16 V | ||
| Maximum Open Circuit Voltage
Response Time (DAC input code to output) Gap (0 mA) of Output to Field on Switchover |
22 V
settles to within 1% of final value within 80 ms 10 ms maximum (applies to Redundancy only) |
||
The C300 Controller is constructed using the Series C form factor that employs an Input Output Termination Assembly (IOTA) and an electronics module which mounts and connects to the IOTA. One C300 Controller contains all of the control functionality and the communications functions with plug-in modules.
The C300 Controller may operate in both non-redundant and redundant configurations. Redundant operation requires a second identical controller and connecting cables, which is the typical configuration. The C300 Controller is connected to the associated I/O hardware by a pair of I/O Link Interface cables
