Honeywell electrode conductance 4973(DL43XX) and 4974

Honeywell electrode conductance 4973(DL43XX) and 4974

Overview

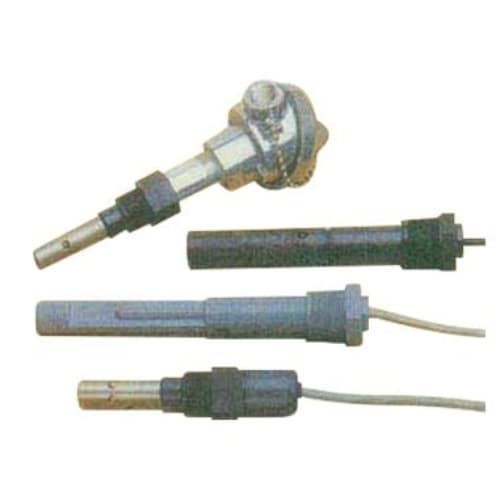

The 4974 series Conductivity Cells, Figure 1, have a rugged configuration for reliable continuou measurements of electrolytic conductivity in industrial water processes at the maximum temperature

Specifications

All 4974 Series Conductivity Cells are suitable for use in Clean-In-Place (CIP) fittings. They are one piece molded units that cannot come apart and require no replacement parts.

Packaging Details:

Honeywell Standard Packing for Honeywell electrode conductance 4973(DL43XX) and 4974

Delivery Detail:

15-45 days for electrode conductance 4973(DL43XX) and 4974

Below :

Cell constant 0.01
This cell has an outer electrode length of 2 3/4 inches. The temperature compensation sensor is located inside the inner electrode (Figure 1).

Cell constant 0.1
This cell has an outer electrode length of 2 inches. The temperature compensation sensor is located inside the inner electrode.

Cell constant 1.0
This cell differs visually from the 10 constant cell by having a wider shielded flow channel that conducts the solution being measured past the electrodes of the cell. The spacing of the electrodes also differs; the three electrodes are 1/4 inch diameter graphite spaced 1/16 in. apart. The temperature compensating sensor is integral with the cell body (Figure 1).

Cell constant 10
This cell differs visually from the 1.0 constant cell by having a narrower shielded flow channel that conducts the solution being measured past the electrodes of the cell. The spacing of the electrodes also differs; the three electrodes are 1/8 inch diameter graphite spaced 5/8 in. apart. The temperature compensating sensor is integral with the cell body.
