Endress Hauser Proline Promass O 100 Coriolis mass Đồng hồ đo lưu lượng
mass flowmeter

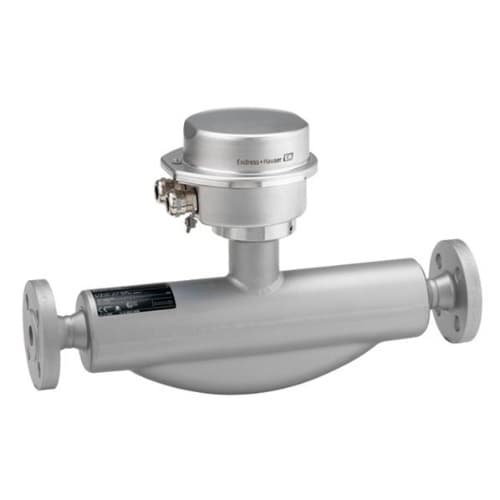

mass flowmeter Endress Hauser Proline Promass O 100 is the robust high-pressure flowmeter with an ultra-compact transmitter.
- Brand :Endress Hauser
- Model:Endress Hauser Proline Promass O 100 Coriolis mass flowmeter
- Diameter：DN 80 to 250 (3 to 10″)
- Measurement error：Mass flow (liquid): ±0.1 (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 %
Density (liquid): ±0.0005 g/cm³ - Range:0 to 800 000 kg/h (0 to 29 400 lb/min)
- Pressure range:PN 250, Class 1500
- Process Temperature: –40 to +205 °C (–40 to +401 °F)
- Output:4‐20 mA HART (active)
Pulse/frequency/switch output (passive) - Input:None
Endress Hauser Proline Promass O 100 Coriolis mass flowmeter
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Premium accuracy at highest process pressures, fully
suitable for onshore/offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250 (Class 1500)
• Nominal diameter: DN 80 to 150 (3 to 6″)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Premium accuracy at highest process pressures, fully
suitable for onshore/offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250 (Class 1500)
• Nominal diameter: DN 80 to 150 (3 to 6″)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available
