Pressure Transmitter

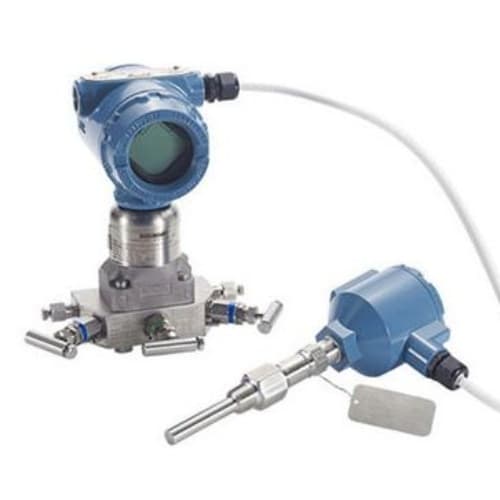

Emerson Rosemount 3051S Series Pressure Transmitter

The Rosemount 3051S MultiVariable Transmitter delivers

unprecedented performance and capabilities by providing

superior flow calculations including fully compensated mass

or volume, energy, and totalized flow.

Specify the level of compensation that best  matches the application:

• Gas, natural gas, and steam measurement: Utilize full
• compensation (differential pressure, line pressure, and temperature measurement)
• Saturated steam: Utilize differential and line pressure,
• or differential pressure and temperature measurement
• Liquids: Utilize differential pressure and temperature measurement
• Liquids at stable temperatures: Utilize differential pressure measurement
• 4-20 mA HART, WirelessHART
• Specifications

  Measurement Type	Static Pressure, Process Temperature Differential Pressure and Static Pressure Process TemperatureStatic Pressure and Temperature
  Accuracy	Up to ±0.04% of span or ±0.04% of reading
  Stability	Up to ±0.20% of Upper Range Limit (URL) for 15 years
  Warranty	Up to 15-year limited warranty
  Rangedown	Up to 200:1
  Communication Protocol	4-20 mA HART, WirelessHART®, FOUNDATION fieldbus
  Measurement Range	Up to 2000 psi (137,89 bar) differential, Up to 3626 psi (250,00 bar) static
  Process Wetted Material	316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST
  Diagnostics	Basic Diagnostics
  Certifications/Approvals	NSF, NACE®, hazardous location, see full specs for complete list of certifications
