Rosemount Temperature Transmitter

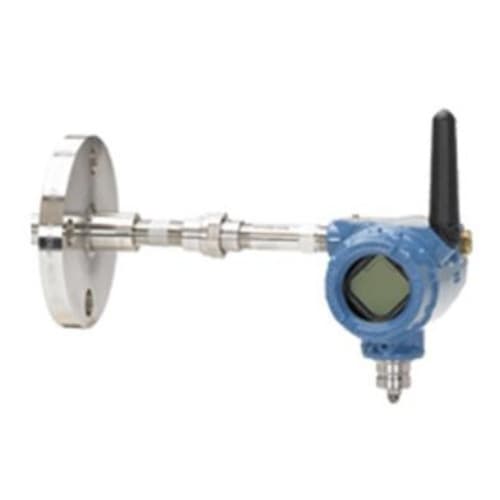

Rosemount 648 Wireless Temperature Transmitter

The industry-leading Rosemount 648 Wireless Temperature

Transmitter delivers unmatched field reliability and

performance as a wireless measurement solution.

The 648 Wireless is ideal for high performance applications,

helping you achieve optimal efficiency with Best-in-Class

product specifications and capabilities.

The Rosemount 648 Wireless features include a large, easy to

read display, user-configurable process alerts, Long and

Extended Range Antenna options, and Transmitter-Sensor

Matching for enhanced accuracy.

Fully compatible with any IEC-approved WirelessHART network,

the 648 Wireless provides rich diagnostic data and reliable

performance as a Smart Wireless temperature solution.

1. Superior accuracy and stability.
2. Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms).
3. Transmitter-Sensor Matching with Callendar-Van Dusen.
4. IEC-approved Wireless HART protocol.
5. Dual-compartment housing, available in aluminum or stainless steel.
6. Large LCD display.
7. Extended Range Antenna options available
8. Output: IEC 62591 (Wireless HART), 2.4 GHz DSSS.
9. Accuracy: for Pt 100 is ±0.225 °C.
10. Radio Frequency Power Output from Antenna: Maximum of 10 mW for External Antenna.
11. Stability: ±0.15% for 2 years.
12. Temperature Limits: –20 to 80 °C with LCD and –40 to 85 °C without LCD.
13. Physical specification:
