Rosemount 2051L Liquid Level Transmitter

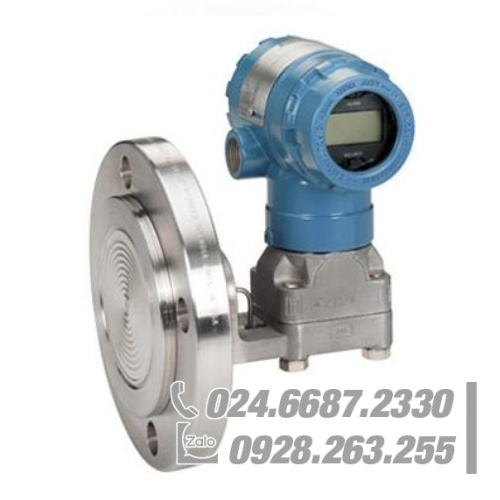

The flange-mounted Rosemount 2051L liquid level transmitter

provides precise level and specific gravity measurement up

to 300 psi for a wide variety of tank configurations.

Based on proven capacitance cell technology, the Rosemount

2051L liquid level transmitter is designed for applications

requiring high levels of accuracy and performance, such as

inventory control, material balance, and head box.

With many diaphragm and flange options to fit all process

and installation needs, the Rosemount 2051L liquid level

transmitter is engineered to be the perfect fit for nearly

any application.

The Rosemount 2051L liquid level transmitter offers an

accuracy of 0.075% of span, 100:1 rangeability, and two-year

stability of 0.10% to provide confidence in your

measurements.

A welded fill fluid system provides best-in-class system reliability.

The Rosemount 2051L liquid level transmitter is configurable

with multiple wetted materials and fill fluids.

A wide range of options and hazardous area approvals are also available.

Output options available to the Rosemount 2051L liquid level

transmitter include 4-20mA or 1-5VDC with HART protocol, or

FOUNDATION fieldbus.

Brief introduction

Rosemount 2051 series pressure transmitter is specially

designed for a wide range of application requirements.

It provides reference for accuracy of 0.075%, 100:1 range

than, 2 years of stability.

Using strong commonality of common graphic platform design, the pressure,

Connection is the best process flow and level measurement applications.

2051 series pressure transmitter can provide comprehensive differential pressure,

Gage pressure and absolute pressure measuring scheme, thus

satisfies the customer the pressure,

Liquid level and flow measurement requirements.

The technical performance

The accuracy of performance index is high to 0.075%

Welding sealing liquid filling system to provide the first-class reliability

Flush type and expand the diaphragm

Can provide a variety of filling liquid
