Rosemount 3051L Liquid Level Transmitter/ Đo mức

Rosemount 3051L Liquid Level Transmitter/ Đo mức

Rosemount Level Transmitter

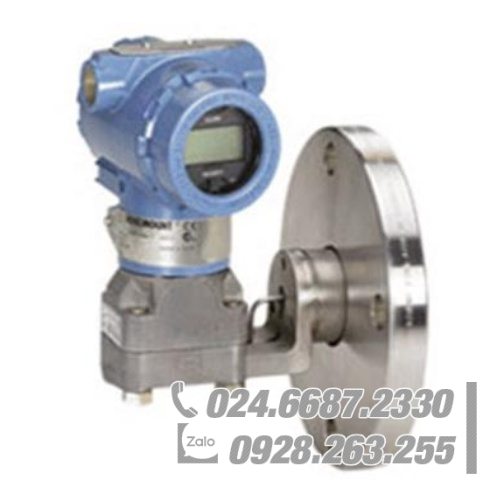

Rosemount 3051L Liquid Level Transmitter

Output

  • 4-20 mA with digital signal based on HART Protocol
  • Low Power, 1-5 V dc with digital signal based on HART Protocol
  • Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range

  • 0-8.3 in H2O to 0-300 psi

Accuracy

  • +/-0.075% of span

Power

  • 4-20 mA: 10.5-55 V dc with no load
  • Low Power: 6-12 V dc with no load

Materials

  • Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum Process Flange: Carbon Steel, SST

Fluid

  • Sensor fill fluid: DC 200 Silicone, DC 704, Silicone, Syltherm 800, Syltherm XLT, Inert (Halocarbon), Glycerin and Water, Neobee M-20, Propylene Glycol and Water

Mounting

  • Coplanar and Traditional flanges
  • Adapters: High-side Diaphragm: 316L SST, Hastelloy C-276
Mã: 1355-10180 Danh mục:

Rosemount  Level Transmitter

Rosemount 3051L Liquid Level Transmitter

The Rosemount 3051L liquid level transmitter provides

precision level and specific gravity measurement for a wide

variety of tank configurations. Based on proven capacitance

cell technology, the Rosemount 3051L liquid level

transmitter is designed for applications requiring the

highest levels of accuracy and performance, such as

inventory control, material balance, and head box.

With many diaphragm and flange options to fit all process

and installation needs, the Rosemount 3051L liquid level

transmitter is engineered to be the perfect fit for nearly

any application.

The Rosemount 3051L liquid level transmitter offers accuracy

up to 0.075% of span and 100:1 rangeability.

A welded fill

fluid system provides best-in-class system reliability.

The Rosemount 3051L liquid level transmitter is configurable

with multiple wetted materials and fill fluids.

A wide range of options and hazardous area approvals are

also available.

Output options available to the Rosemount 3051L liquid level

transmitter include 4-20mA or 1-5VDC with HART protocol,

Profibus, or FOUNDATION fieldbus better.
