Omron proximity sensor/ Cảm biến tiệm cận TL-L Series

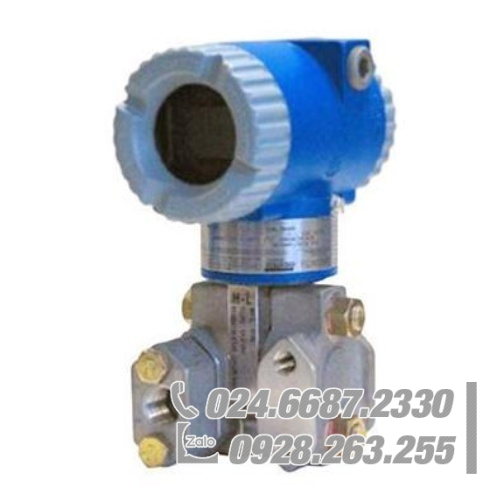

The Foxboro® I/A Series® Model IGP20 is an intelligent, two-wire transmitter that provides precise, reliable, measurement of absolute pressure, and transmits a 4 to 20 mA output signal with HART, FoxCom™, and FOUNDATION fieldbus, communication protocols, software selectable, for remote configuration and monitoring. Long-term stability with drift is less than +0.05% of URL per year for 5-years.

Key Benefits

  • Simple, elegant sensor packaging uses very few parts to achieve exceptionally high reliability
  • Liquid Crystal Display (LCD) digital indicator with on-board pushbutton configuration and calibration.
  • NEMA 4X and IEC IP66 durable epoxy-coated aluminum, or 316 ss housings.
  • Co-Ni-Cr, 316L ss, and Nickel alloy (equivalent to Hastelloy®(1)) sensor materials for all transmitters.
  • Can be provided with numerous configurations of direct connect or remote mount seals.
  • Choice of Mounting Styles: IGP10 for compact light weight and direct-to-process mounting (bracket optionally available
  • Rugged & Dependable: Field-proven silicon strain gauge technology and corrosion-resistant epoxy finish
  • Superior Performance: High accuracy to +0.05% of calibrated span in the digital linear mode, and +0.06% of calibrated span in the 4 to 20 mA linear mode.
  • Rugged & Dependable: Ambient temperature effects to+0.02% URL per 55 C (100 F) change of normal operating conditions.
  • Best in the industry – 5 year warranty
Mã: 1354-10630 Danh mục:
