proximity sensor

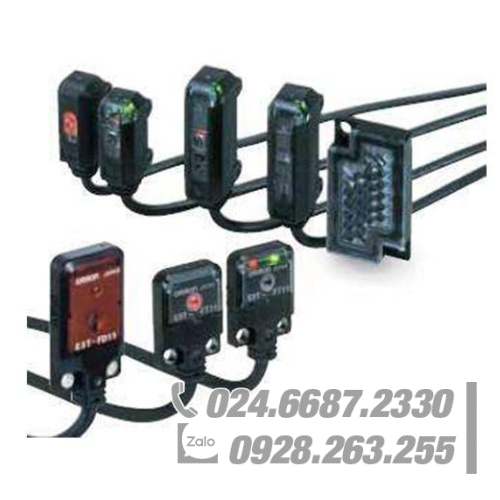

Omron Proximity Sensor TL-L Series





Features:



A proximity sensor that starts the reed switch with a

permanent magnet

It is suitable for opening and closing of detection doors

species:
Terminal type (switch section)

Type of model

Model GLS-1

Switch GLS-S1

The magnet portion GLS-M1

Lead wire type (switch section)

Type of wire long model

Complete sets of models 1m GLS-1L

Switch section GLS-S1-L

Note: For wire leads, the magnetic parts can not be

purchased separately.

The wire lead-out type is different from the size of the

terminal block type magnet section.

Rating / Performance:

Item Model GLS-1 GLS-1L

Find out the distance 15mm * 1

Contact circuit 1a

Contact Capacity * 2 Maximum Operating Voltage: DC100V

Maximum use of current: DC0.1A

Maximum contact capacity: 10W (including opening and closing)

Contact withstand voltage DC250V 1min (leakage current 1mA or less)

Response frequency below 20Hz

Ambient temperature range of work, save: the -20 ~ +60 ℃ (no icing, condensation)

Environmental Humidity Range Operating, when stored: 35 ~ 85% RH (no condensation)

Contact resistance 150mΩ or less 250mΩ or less (including

the conductor resistance of the wire)

Withstand voltage AC1,000V 1min between the terminals and the shell

Life of more than 50 million times (DC24V 0.1A resistance load)

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X,

Y, Z direction 2h

Impact (durable) 300m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP40

Connection type Terminal type Lead wire lead type (standard

wire length 1m)

Material switch parts ABS

Magnet parts

* 1. The actual detection distance is 15mm or more, please note.

* 2. Outdoor can not be used.
