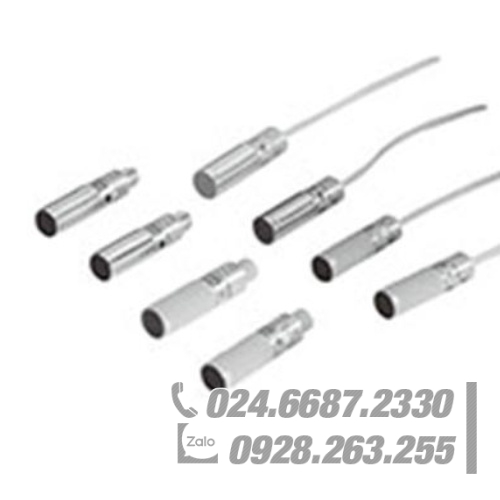

Omron Proximity Sensor E2E2 Series

Features:

Enhance the tightening strength, but also standard wire protector

To enhance the visibility of the indicator light, all models used in all wrench clamping with milling

species:
Ontology

DC 2-wire

Shape detection distance model
Action mode
NO NC
shield
451_lu_1_1
M12 3mm E2E2-X3D1 * E2E2-X3D2
M18 7mm E2E2-X7D1 * E2E2-X7D2
M30 10mm E2E2-X10D1 * E2E2-X10D2
Unshielded
451_lu_1_2
M12 8mm E2E2-X8MD1 * E2E2-X8MD2
M18 14mm E2E2-X14MD1 * E2E2-X14MD2
M30 20mm E2E2-X20MD1 * E2E2-X20MD2

* With different frequency type. Model E2E2-X □ D15. (Eg E2E2-X3D15)
DC 3-wire

Shape detection distance model
Action mode
NO NC
shield
451_lu_1_1
M12 2mm E2E2-X2C1 E2E2-X2C2
M18 5mm E2E2-X5C1 E2E2-X5C2
M30 10mm E2E2-X10C1 E2E2-X10C2
Unshielded
451_lu_1_2
M12 5mm E2E2-X5MC1 E2E2-X5MC2
M18 10mm E2E2-X10MC1 E2E2-X10MC2
M30 18mm E2E2-X18MC1 E2E2-X18MC2
Exchange 2 lines

Shape detection distance model
Action mode
NO NC
shield
451_lu_1_1
M12 2mm E2E2-X2Y1 E2E2-X2Y2
M18 5mm E2E2-X5Y1 E2E2-X5Y2
M30 10mm E2E2-X10Y1 E2E2-X10Y2
Unshielded
451_lu_1_2

M12 5mm E2E2-X5MY1 E2E2-X5MY2
M18 10mm E2E2-X10MY1 E2E2-X10MY2
M30 18mm E2E2-X18MY1 E2E2-X18MY2
Rating:
Rated specification / performance

DC 2-wire (E2E2-X □ D □)

Size M12 M18 M30
Shielded shielded unshielded shielded unshielded shielded unshielded

Item Model E2E2
-X3D □ E2E2
-X8MD □ E2E2
-X7D □ E2E2
-X14MD □ E2E2
-X10D □ E2E2
-X20MD □

Detection distance 3mm ± 10% 8mm ± 10% 7mm ± 10% 14mm ± 10% 10mm ± 10% 20mm ± 10%

Set distance * 1 0 ~ 2.4mm 0 ~ 6.4mm 0 ~ 5.6mm 0 ~ 11.2mm 0 ~ 8mm 0 ~ 16mm

Should be less than 10% of the detection distance

Detection of magnetic metal (non-magnetic metal detection

distance is short.) See the “characteristic data”

Standard detection object iron 12 × 12 × 1mm iron 30 × 30 × 1mm iron 18 × 18 × 1mm iron 30 × 30 × 1mm iron 30 × 30 × 1mm iron 54 × 54 × 1mm

Response frequency * 2 1kHz 800Hz 500Hz 400Hz 100Hz
voltage

(Using voltage range) DC12 ~ 24V ripple (p-p) 10% or less
(DC10 to 30V)

Leakage current below 0.8mA

Control output switch capacity 3 ~ 100mA

Residual voltage 3V or less (load current 100mA, wire length 2m)

Indicator D1: Action display (red), set display (green)

D2 type: action display (red)

Action mode
(Close to the detection of objects) D1 type: NO

D2 type: NC

For details, please refer to the “I / O section circuit diagram” of the sample

Protection loop surge absorption, load short circuit protection

Ambient temperature work, save: the -25 ~ +70 ℃ (no icing, condensation)

Ambient humidity When operating, save: 35 ~ 95% RH (no condensation)

Temperature of the temperature range of -25 ~ +70 ℃, +23 ℃, the detection distance of ± 10%

Voltage within ± 15% of the rated power supply voltage

within the rated power supply voltage within ± 1% of the detection distance

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing
Withstand voltage AC1,000V 50 / 60Hz 1min c

harging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 1,000m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67, the company internal standard oil

Connection type wire lead type (standard wire length 2m)

The quality (after packaging) is about 65g about 150g about 210g

Material shell brass

Detection of polybutylene terephthalate (PBT)
Tighten nuts brass, nickel plated

Toothed washer iron, galvanized
Accessories manual

* 1. Please use the green indicator light in the range. (Except D2)

* 2. The response frequency of the DC switch is averaged. Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval of 2 times the object, set the distance of 1/2 of the detection distance.
