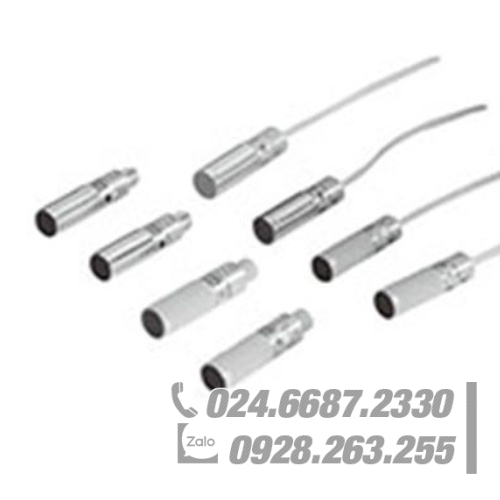

Omron Proximity Sensor E2KQ-X Series
Features:
Excellent chemical resistance, oil resistance (fluororesin
housing)
Adjust the distance according to the detection object
(sensitivity knob)
species:
Sensors
Shape Detection Distance Output Type Action Type Model
Unshielded
474_lu_1_1
M18 10mm
[6 ~ 10mm *] DC
3 lines
NPN NO E2KQ-X10ME1 2M
NC E2KQ-X10ME2 2M
Rating / Performance:
Item Model E2KQ-X10ME1 E2KQ-X10ME2
Standard detection distance * 1 10mm
Detection range of variable range 6 ~ 10mm
Should be detected by the distance of 4 to 20%
Can detect object conductor and dielectric body
Standard detection of objects to ground metal plate 50 × 50 × 1mm
Response frequency 35Hz
Power supply voltage (using voltage range) DC12 ~ 24V
Pulsation (p-p) 10% or less (DC10 ~ 30V)
Current consumption below 15mA
Control output switch capacity 100mA
Residual voltage 1.5V or less (load current 100mA, wire
length 2m)
Indicator light (red)
Action mode (near detection of object) * 2 NO NC
Ambient temperature range Operating: -10 ~ +55 ℃, save: -25
~ +55 ℃ (no icing, condensation)
Temperature of the temperature range of -10 ~ +55 ℃, +23
℃, the detection distance of ± 15%
The voltage is within ± 20% of the rated power supply
voltage, the rated power supply voltage, the detection
distance of ± 2%
Insulation resistance 50MΩ or more (DC500V megger) The
charging unit is integral with the housing
Withstand voltage AC500V 50 / 60Hz 1min charging part
between the whole and the shell
Vibration (durable) 10 ~ 55Hz double amplitude 1.5mm X, Y, Z direction 2h
Impact (durable) 500m / s2 X, Y, Z direction 3 times
Material shell, detection of fluorine resin
Tighten nuts
Cable PVC
Accessories Adjustable screwdriver, instruction manual
* 1. The numbers in the table are the detection distance of
the standard detection object. For other materials please
refer to the sample “Characteristic data”.
* 2. For details, refer to the timing diagram of the “Input
Output Section Circuit Diagram” on the sample.
