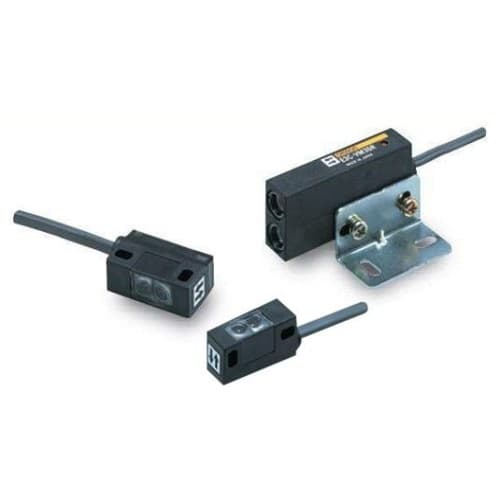

OMRON Photoelectric Sensors E3C-VS/VM series

SKU:1236-10170

OMRON Photoelectric Sensors E3C-VS/VM series Tiny spot, the most suitable for small objects and mark the detectionof small objects and subtle color.
■ Seam detection.
■ 200μ pole detection.
■ Small segment difference detection.

E3C-VM35R Sensor Unit , Mark Sensor , Red LED Light , Sensing Distance 35±5mm 2D / 3D

E3C-VS1G Sensor Unit , Mark Sensor , Green LED Light , Sensing Distance 10±2mm 2D / 3D

E3C-VS3R Sensor Unit , Mark Sensor , Red LED Light , Sensing Distance 30±5mm 2D / 3D

E3C-VS7R Sensor Unit , Mark Sensor , Red LED Light , Sensing Distance 70±10mm 2D / 3D

OMRON Photoelectric Sensors E3C-VS/VM series

Item Model E3C-VS1G E3C-VS3R E3C-VM35R E3C-VS7R
Detection distance 10 ± 2mm 30 ± 5mm 35 ± 5mm 70 ± 10mm
Minimal detection of objects
(Black on the bottom of the black logo)
Distance from center detection
0.7mm
Distance from center detection
2mm
Distance from center detection
0.2mm
Distance from center detection
0.6mm
Light source (light emitting wavelength) green light emitting diodes
(565 nm)
Red light emitting diodes
(680 nm)
Red light emitting diodes
(660 nm)
Weight (bundled state) about 50g about 60g
quality
Housing Polyester Heat Resistant ABS
Lens Department Polyester Glass
Metal installation
Accessories – iron
Annex Operating Instructions
Metal mounting accessories, + – screws
M3 × 16, spring washer, flat pad
Circle, nut M3
Metal mounting accessories, + – screws
M3 × 16, spring washer, pay tape
Flat washer, nut M3 operating instructions
book
