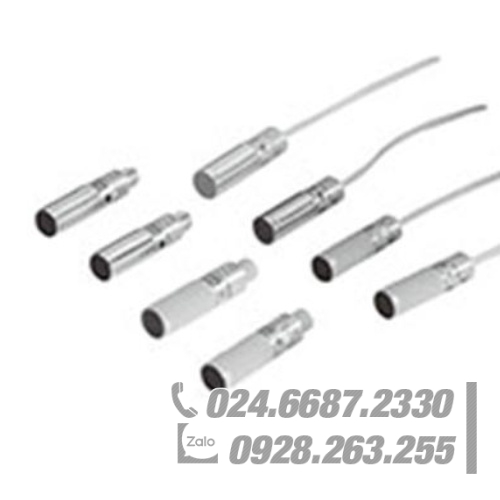

new and original omron E2EM cylindrical proximity sensor



Features:
Up to 30mm long distance detection, can effectively reduce the workpiece collision accident

No polarity specifications, it can be a simple wiring (DC 2-wire)

Use standard wire sheath to prevent breakage

species:
Ontology

DC 2-wire / wire lead-out type

Shape detection distance model
Operation mode NO Operation mode NC
shield
450_lu_1_1

* 1 M12 4mm E2EM-X4X1 2M * 2 E2EM-X4X2 2M
M18 8mm E2EM-X8X1 2M * 2 E2EM-X8X2 2M
M30 15mm E2EM-X15X1 2M * 2 E2EM-X15X2 2M
Unshielded
450_lu_1_2
M18 16mm E2EM-X16MX1 2M E2EM-X16MX2 2M
M30 30mm E2EM-X30MX1 2M E2EM-X30MX2 2M

Rating:
DC 2-wire (E2EM-X □ X □)

Size M12 M18 M30
Shielded shielded shielded unshielded shielded
Item Model E2EM-X4X □ E2EM-X8X □ E2EM-X16MX □ E2EM-X15X □ E2EM-X30MX □

Detection distance 4 mm ± 10% 8 mm ± 10% 16 mm ± 10% 15 mm ± 10% 30 mm ± 10%

Set distance * 1 0 ~ 3.2 mm 0 ~ 6.4 mm 0 ~ 12.8 mm 0 ~ 12mm 0 ~ 24 mm

Should be less than 15% of the detection distance

Detectable object magnetic metal (non-magnetic metal

detection distance is short. Please refer to the sample “characteristic data”

)
Standard detection of iron objects

12 × 12 × 1mm iron
18 × 18 × 1mm iron
45 × 45 × 1mm iron
30 × 30 × 1mm iron
70 × 70 × 1mm

Response frequency * 2 1kHz 0.5kHz 0.4kHz 0.25kHz 0.1kHz
Power supply voltage (using voltage range) Use DC12 ~ 24V ripple (p-p) 10% or less (DC10 ~ 30V)

Leakage current below 0.8mA

Control output switch capacity 5 ~ 100mA

Residual voltage * 3 5V or less (load current 100mA, wire length 2m)

Indicator light type X1: action display (red), set display (green)

X2 type: action display (red)
Action mode

(Near detection object) X1 type: NO
Type X2: NC

For details, refer to the timing diagram of the “Input Output Section Circuit Diagram” on the sample

Protection loop surge absorption, load short circuit protection

Ambient temperature range Operating: -25 ~ + 70 ° C, when stored: -40 ~ + 85 ° C (no icing, condensation)

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature effects Temperature range -25 to + 70 ° C, + 23 ° C, within ± 15% of detection distance

Voltage within ± 15% of the rated power supply voltage, the rated power supply voltage, the detection distance of ± 1%

Insulation resistance 50MΩ or more (DC500V megger) The charging unit is integral with the housing

Withstand voltage AC1,000V 50 / 60Hz 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 1,000m / s2 X, Y, Z direction 10 times
Protection structure IEC standard IP67, the company internal standard oil

Connection type wire lead type (standard wire length 2m)
The mass (after packaging) is about 60g about 130g about 150g about 180g about 210g

Material Housing Brass Nickel Plating

Detection surface PBT

Tighten nuts brass nickel plated

Toothed Washer Galvanized

To pay the product manual

* 1. Please use the green indicator light in the range. (Except X2)

* 2. The response frequency is the average.

Measurement conditions: the standard detection of objects,

the detection of objects spacing for the standard detection

of objects 2 times the set distance of the detection distance of 1/2.

* 3. Residual voltage is 5V, please check with the connection device interface conditions. (See sample)
DC 3-line (E2EM-X □ C □)
