KEYENCE Proximity Sensors EM series with in-cable amplifiers proximity sensors.
KEYENCE Proximity Sensors EM series
KEYENCE Proximity Sensors EM series with in-cable amplifiers proximity sensors.
Features:
Small, amplifier-in-cable sensor heads with built-in indicator LEDs and up to a 8-mm detecting distance.
-
- Ultra-small sensor head
- Amplifier and operation indicator built into cable.
- Strong, flexible cable IP-67 waterproof housing

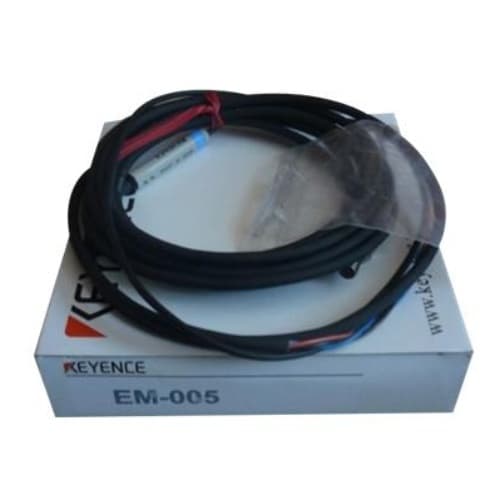

KEYENCE Proximity Sensors EM series EM-005
| Model | EM-005 | |||
| Type | Shielded | |||
| Shape | M5 Threaded | |||
| Detecting distance | 1.0 mm 0.04″ ±15% | |||
| Detectable object | Ferrous metals (see Characteristics for non-ferrous metals) | |||
| Standard target (iron, t=1 mm 0.04″) |
5 x 5 mm 0.20″ | |||
| Hysteresis | 10% max. of detecting distance | |||
| Response frequency | 1.2 kHz | |||
| Operation mode | N.O. | |||
| Temperature characteristics | ±10% max. of detecting distance at +23°C 73.4°F, within -10 to +70°C14 to 158°F | |||
| Display indicator | Red LED | |||
| Output | NPN | |||
| Control output | NPN: 200 mA (40 V) max., Residual voltage: 1 V max. | |||
| Housing | Stainless steel | |||
| Rating | Power voltage | 10.8 to 30 VDC, Ripple (P-P) 10% max.*1 | ||
| Current consumption. | 12 mA max. | |||
| Environmental resistance | Enclosure rating | IP67 | ||
| Operating temperature range | -25 to +80°C -13 to 176°F, No freezing | |||
| Operating ambient humidity | 35 to 95%, No condensation | |||
| Weight (including nuts and 2-m 6.6′ cable) |
Approx 40 g | |||
| *1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects. | ||||
