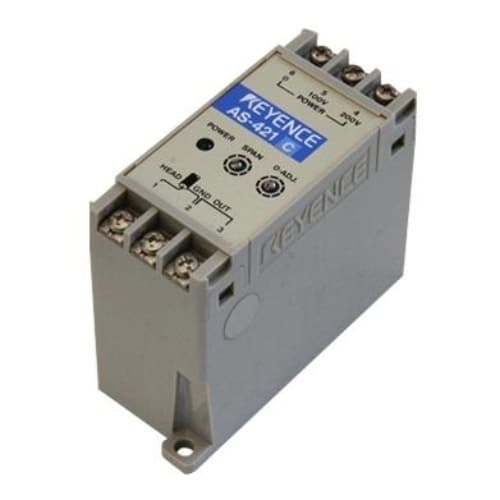

KEYENCE Proximity Sensors AS series AS-421C

KEYENCE Proximity Sensors AS series AS-421C

Model: AS-421C
Type: Amplifier
Sensing head: AH-308
Measuring range: 0 to 2.0mm
Output voltage: 0.5 to 1.0V
Linear range: 0.5 to 1.0mm
Resistance: 100 Ω
Resolution: 0.2% of F.S.
Straight: ± 2.0% of F.S.
Frequency response: 3.3kHz (-3dB)
Sensing head: F.S. 0.06% / ℃ * 1
Power supply voltage: 100 / 200VAC ± 15% 50 / 60Hz
Power consumption: 6VA
Ambient temperature: -10 to + 60 ° C
Relative humidity: 35 to 85% RH (no condensation)
* The temperature characteristic is when the distance from the object is within 1/2 of the measuring range.
