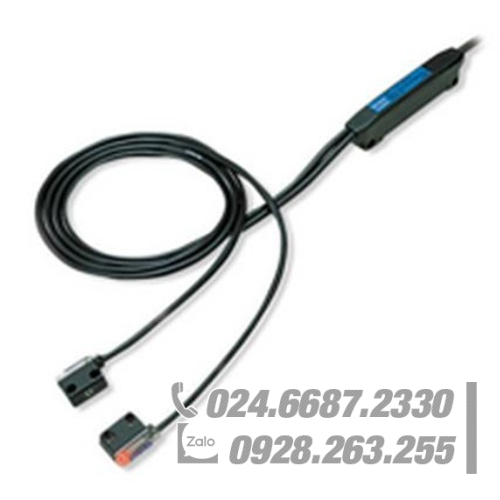

KEYENCE Photoelectric Sensors PQ Sensor PQ-01
| Model | PQ-01 | |||
| Type | Thrubeam Short-detecting distance | |||
| Detecting distance | 100 mm 3.94″ | |||
| Light source | Infrared LED | |||
| Detectable object | 1 mm 0.04″ dia. min. opaque materials |
|||
| Minimum detectable object | 0.5 mm 0.02″ dia. copper wire | |||
| Response time | 1 ms max. | |||
| Operation mode | DARK-ON *1 | |||
| Indicator lamp | Output: Red LED | |||
| Control output | NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max.*2 | |||
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber | |||
| Rating | Power voltage | 12 to 24 VDC ±10% | ||
| Current consumption. | 30 mA max. | |||
| Environmental resistance | Enclosure rating | IP64 | ||
| Operating ambientluminance | Incandescent lamp: 3,000 lux max., Sunlight: 10,000 lux max. | |||
| Operating temperature range | -20 to +55°C -4 to 131°F, No freezing | |||
| Operating ambient humidity | 35 to 85% RH (No condensation) | |||
| Vibration | 10 to 55 Hz, double amplitude: 1.5 mm 0.06″, 2 hours each in the X, Y and Z axis | |||
| Shock resistance | 500 m/s2 in X, Y, and Z directions, 3 times respectively | |||
| Material | Amplifi er: Polysulfone, Sensor head: Polyarylate | |||
| Weight (including 2m 6.6′ cable) | Approx. 48 g | |||
