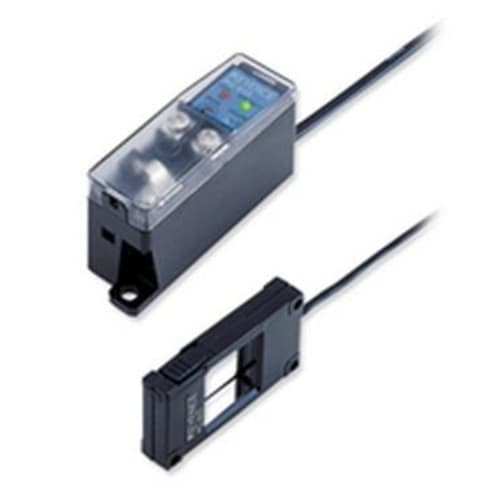

KEYENCE Photoelectric Sensors PG series quick response sensor detecting φ0.5 mm.
KEYENCE Photoelectric Sensor PG Series
KEYENCE Photoelectric Sensors PG series quick response sensor detecting φ0.5 mm.
FEATURES
- Unique optical system
- Detects only moving targets
- Automatic sensitivity-compensating circuit
Modela:
Independent photoelectric sensor PZ-V / M series
PZ-M51, PZ-M51P, PZ-M52, PZ-M52P, PZ-M53, PZ-M53P
PZ-M61P, PZ-M62, PZ-M62P, PZ-M63, PZ-M63P, PZ-M65, PZ-M63
PZ-M73, PZ-M71, PZ-M32, PZ-M73P, PZ-M73P, PZ-M73P, PZ-M75, PZ-M31, PZ-M31P, PZ-M32, PZ-M32P PZ-M13, PZ-M13P, PZ-M13, PZ-M13, PZ-M13, PZ-M13, PZ-M12, PZ-M12, PZ-M13P, PZ-M13P, PZ-M13
PZ-V73, PZ-V73, PZ-V72, PZ-V72P, PZ-V73, PZ-V73P, PZ-V73, PZ-V31, PZ-V31P, PZ-V32, PZ-V32P, PZ-V33 PZ-V13P, PZ-V35, PZ-V11, PZ-V11P, PZ-V12, PZ-V12P, PZ-V13, PZ-V13P, PZ-V15
Transparent target photoelectric sensor: PZ2-62, PZ2-62P
Focused beam photoelectric sensor: PZ-101, PZ-101P
Ultra-strong light type photoelectric sensor PX series (oil, waterproof ability stronger)
Sensing head light through type: PX-H72, PX-H71, PX-H72G, PX-H71TG
Reflective type: PX-H61, PX-H61G
Digital amplifiers: PX-10, PX-10P, PX10C, PX-10CP
Single – key calibration photoelectric sensor PS01 series
PS-55, PS-55, PS-55, PS-52, PS-52, PS-52, PS-52, PS-52
Diffuse Reflective: PS-45, PS-46, PS-48, PS-205, PS-206
Limited reflection type: PS-47, PS-47C, PS-49, PS-49C
Amplifier module: PS-T1, PS-T2, PS-T0, PS-T1P, PS-T2P
Ultra – small amplifier separate photoelectric sensor PS series
Amplifier: PS2-61, PS2-61P, PS-X28, PS-25
Line built-in amplifier type photoelectric sensor PQ series
Pass type: PQ-01, PQ-02
Optical type by confirming the sensor PG series
Sensor head: PG-602, amplifier: PG-610
KEYENCE Photoelectric Sensors PG series laser sensor
| Model | PG-610 | |||
| Type | Amplifier | |||
| Detecting area | 21 x 21 mm 0.83″ x 0.83″ | |||
| Minimum detectable object | 0.5 mm 0.02″ dia. min. opaque materials | |||
| Light source | Infrared LED | |||
| Sensitivity adjustment | 1-turn trimmer | |||
| Indicator lamp | Output: Red LED, Stable operation: Green LED | |||
| Output | Control output | NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*1 | ||
| Self-diagnostic output | NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*2 | |||
| Response time | 0.2 ms*2 | |||
| Off-delay time | 0.5 / 70 ms (selectable) | |||
| Rating | Power voltage | 12 to 24 VDC ±10% | ||
| Current consumption. | 40 mA max. | |||
| Environmental resistance | Operating ambientluminance | Fluorescent lamp: 10,000 lux max., Sunlight: 1,500 lux max. | ||
| Operating temperature range | -10 to +50°C 14 to 122°F, No freezing | |||
| Operating ambient humidity | 35 to 85% RH (No condensation) | |||
| Vibration | 10 to 55 Hz, double amplitude: 1.5 mm 0.06″, 2 hours each in the X, Y and Z axis | |||
| Material | Polycarbonate | |||
| Weight | Amplifier (including 3-m 9.8′ cable): Approx. 100 g | |||
