Differential Pressure Transmitters/ Đo áp suất Honeywell SmartLine ST 800 bring smart technology to a wide spectrum of measurement applications.

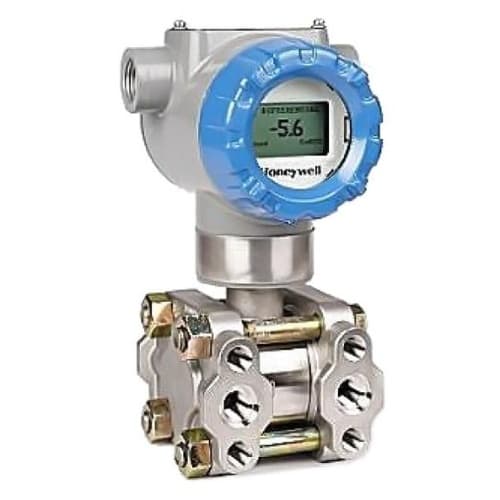

Honeywell SmartLine ST 800 Differential Pressure Transmitters

Introduction

Part by the SmartLine® family of products, the STD800 is a high performance differential pressure substrate bronoresistive sensor technology. By combining differential pressure sensing with on chip static pressure and temperature compensation the STD800 offers high accuracy and stability over a wide range of addressing And temperatures. The Smart levels are compatibility test and compliance with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application requirements for pressure measurement applications.

Best in Class Features:

Accuracies up to 0.035% standard & 0.025% Opt
Stability up to 0.01% of URL per year for ten years
Automatic static pressure & temperature compensation
Rangeability up to 400: 1
Response times as fast as 90ms
Multiple local display capabilities
External zero, span, & configuration capability
Polarity insensitive electrical connections
Comprehensive on-board diagnostic capabilities
Integral Dual Seal design for growing safety based on ANSI / NFPA 70-202 and ANSI / ISA 12.27.0
World class overpressure protection
Full compliance to SIL 2/3 requirements
Modular design characteristics
Available with 15 year warranty
Plugged Impulse Line Detection Option
Dual / Triple Calibration Option (HART & Fieldbus)
