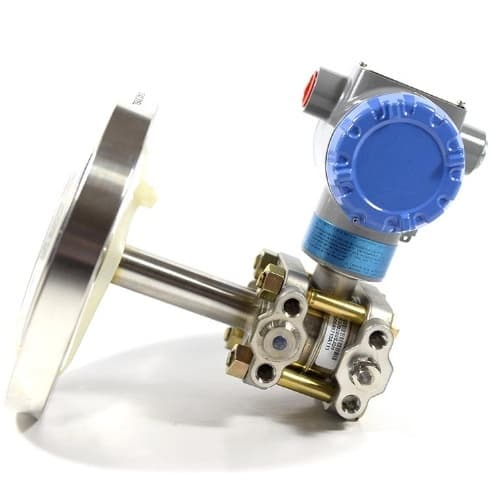

Honeywell STF73F SmartLine Flange Mounted Level Transmitter
Level Transmitter
Level Transmitter Honeywell STF700 series is suitable for monitoring, control and data acquisition. The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linkingprocess pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements. This level of performance allows the ST 700 to replace most competitive transmitters available today.
Features:
- Accuracy up to 0.065 % of calibrated span
- Stability up to 0.02% of URL per year for five years
- Automatic temperature compensation
- Rangeability up to 100:1
- Response times as fast as 100ms
- Alphanumeric display capabilities
- External zero, span, & configuration capability
- Polarity insensitive electrical connections
- On-board diagnostic capabilities
- Integral Dual Seal design for safety based on
- ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
- Full compliance to SIL 2/3 requirements as a standard.
- Modular design characteristics
Honeywell STF73F SmartLine Flange Mounted Level Transmitter
Description
- Honeywell differential pressure transmitter models are the following:
STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
STD930-A1A-00000-MB, SM, 1C (0-700KPa)
STD930-E1A-00000-MB, SM, 1C (0-700KPa)
STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
Differential Pressure Transmitter Range:
STD110 (0 ~ 100 0 ~ 2500Pa)
STD120 (0 to 0.25 0 to 100 kPa)
STD130 (0-0.35 to 0-7 bar)
STD170 (0-7 to 0-210 bar)
STD125 (0-62.2 to 0-1,500 mbar)
Common models:
Honeywell differential pressure transmitter models are the following:
STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
On-line pressure transmitter Range:
STG94L (0 ~ 0.14 0 ~ 3.5MPa)
STG97L (0 ~ 2.1 0 ~ 21MPa)
STG98L (0 to 3.5 0 to 41.5 MPa)
STG99L (0 ~ 3.5 0 ~ 69MPa)
Common models:
Honeywell pressure transmitter has the following models:
STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
On-line pressure transmitter Range:
STG94L: (0 to 0.14 0 to 3.5 MPa)
STG97L: (0 to 2.1 0 to 21 MPa)
STG98L: (0 to 3.5 0 to 41.5 MPa)
STG99L: (0 to 3.5 0 to 69 MPa)
