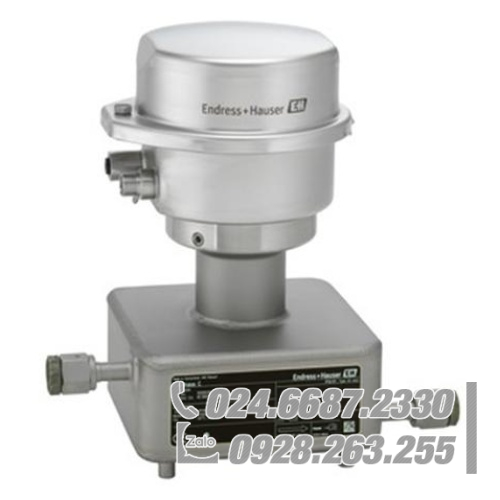

Endress Hauser Proline Cubemass C 100 Coriolis mass flow meter

Endress Hauser Proline Cubemass C 100 Coriolis mass flow meter

mass flow meter

mass flow meter Cubemass C 100 can measure quality and density directly. Measurements can be from a few drops per hour to 1,000 kg per hour.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Cubemass C 100 Coriolis mass flowmeter
  • Diameter：DN 1 to 6 (¹⁄₂₄ to ¹⁄₄”)
  • Measurement error：Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm3
  • Range:0 to 1000 kg/h (0 to 37 lb/min)
  • Pressure range:PN 40, Class 300, 10K, 400 bar (5800 psi)
  • Process Temperature: –50 to +205 °C (–58 to +401 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None
Mã: 1347-10330 Danh mục:

Endress Hauser Proline Cubemass C 100 Coriolis mass flowmeter

Benefits
Reduced installation cost – compact single-tube design
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on smallest footprint
Time-saving local operation without additional software and hardware – integrated web server
Integrated verification – Heartbeat Technology™

Field of application
Measuring principle operates independently of physical fluid properties such as viscosity or density
For smallest quantities of liquids and gases; ideal for skid integration.
Device properties
Nominal diameter: DN 1 to 6 (1/24 to 1/4″)
Process pressure up to 400 bar (5800 psi)
Medium temperature up to +200 °C (+392 °F)
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available
