Magnetic Flowmeter

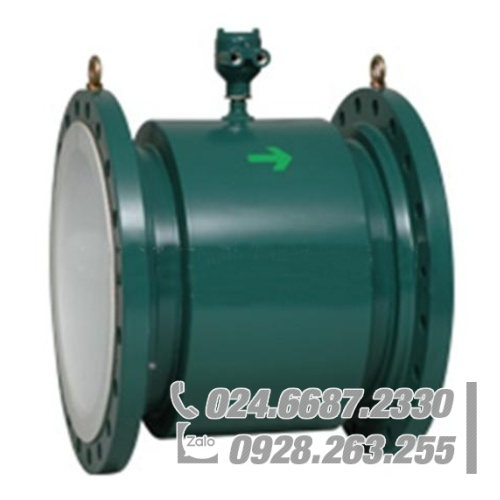

Yokogawa AXW14L Magnetic Flowmeter

STANDARD SPECIFICATIONS
.Protection:
General-purpose type: IP66, IP67
Submersible type: IP68 (can be used for temporary
submergence)
Material (non-wetted parts):
Flowtube:
Housing: Carbon steel
Flange: Carbon steel
Pipe: Stainless steel
Terminal box: Aluminum alloyMaterial (wetted parts):
Lining:
Fluorocarbon PTFE
Natural hard rubber (plus EPDM for sealing)
Natural soft rubber
Polyurethane rubber
Contact Yokogawa office for others.
Electrode:
JIS SUS316L(AISI 316L SS Equivalent)
Hastelloy C276 Equivalent
Grounding ring (option):
JIS SUS304 or SUSF304 (AISI 304 SS Equivalent)
Gasket (for option GR2):
Mixture of SBR and NR

Coating:
General-purpose type:
Pipe, Housing, Flange, Terminal Box:
Corrosion-resistant coating
Coating color: Mint green
Submersible type:
Pipe, Housing, Flange, Terminal Box:
Non-tar epoxy coating (black)
Wiring:
Electrical connection:
ANSI 1/2 NPT female
ISO M20 x 1.5 female
JIS G1/2 (PF1/2) female
Direction of Electrical Connection:
The direction can be changed even after delivery
except for submersible type and DHC option type.
Wiring Terminal:
M4 screw
Grounding:
Grounding resistance 100 Ω or less
Combined Converter:
AXFA11 converter
Signal Cable:
AXFC, Maximum cable length to AXFA11 converter
up to 200 m (660 ft)

Accuracy (Pulse Output):
0.35% of rate for sizes 500 mm (20 in.) to 1000 mm
(40 in.)
0.5% of rate for sizes 1100 mm (44 in.) to 1800 mm
(72 in.)

Reference Model :

AXW500 Size 500 mm (20 in.) Remote Flowtube
AXW600 Size 600 mm (24 in.) Remote Flowtube
AXW700 Size 700 mm (28 in.) Remote Flowtube
AXW800 Size 800 mm (32 in.) Remote Flowtube
AXW900 Size 900 mm (36 in.) Remote Flowtube
AXW10L Size 1000 mm (40 in.) Remote Flowtube
AXW12L Size 1200 mm (48 in.) Remote Flowtube
AXW14L Size 1400 mm (56 in.) Remote Flowtube
AXW16L Size 1600 mm (64 in.) Remote Flowtube
AXW18L Size 1800 mm (72 in.) Remote Flowtube
