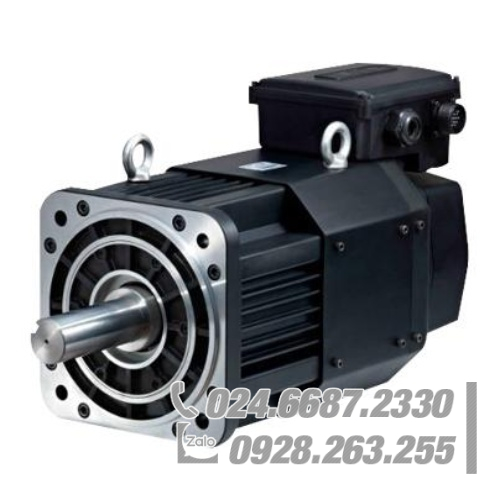

Servo Motor

MITSUBISHI Rotary Servo Amplifier Motor MR-C Series

Stainless Steel Washdown Food Grade Servo Motors

Servo Amplifier
• For up to 400 watts, a super-compact size of only 40 millimeters by 130 millimeters was achieved
• Select either a single-phase 100 V or 200 V amplifier.

Servomotor

• Improved heat dissipation of the motor and a super-compact design are achieved with a molding process
Easy Operation
Automatic Recognition of Motor Model

The servo amplifier automatically regnizes the drive motor with the motor ID information (motor model name, etc.) built into the encoder.
Easy Operation
• Test operation, monitoring, and parameter setting can all be performed easily using just four buttons.

• The servo can remember the conditions that existed during the last four alarms.
• Either a 24 V or 5 V power supply can be selected for the I/O which is assigned by the user.
• The MR-C can handle three command pulse formats: encoder signals, pulse and direction,
and CW / CCW pulses.

UL / CE / IP69K certifications

316L stainless steel construction

Superior to 303/304 for hygiene and corrosion resistance

FDA approved food grade components, shaft seal, and o-rings

Food-grade lubrication

Surface finish meets EHEDG and 3A criteria

Hygienic permanent markings (name plate data)

Single NFPA 79 cable for motor and absolute encoder

White Washdown Food Grade Servo Motors

UL / CE / RoHS / FDA / IP67 certifications

316L stainless steel construction superior to 303/304 for hygiene and corrosion resistance

FDA approved food grade components

PTFE shaft seal

Food-grade lubrication

White surface finish including flange

Stainless steel shaft, fasteners, and connectors

Corrosion proof against common cleaning & disinfecting chemicals

For applications where motor is lateral or below food

Not for direct food contact
