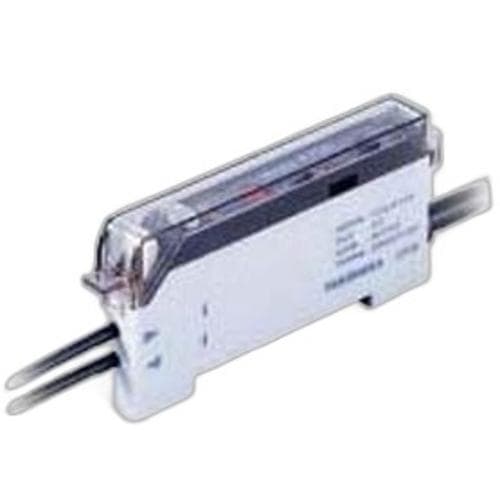

Lắp đặt chung F71 Series KGN F71WH

Moel	NPN	Cable	F71R	F71G	F71B	F71W	F71RH	F71BH	F71WH
		Connector	F71R-J	F71G-J	F71B-J	F71W-J	F71RH-J	F71BH-J	F71WH-J
	PNP	Cable	F71RPN	F71GPN	F71BPN	F71WPN	F71RHPN	F71BHPN	F71WHPN
		Connector	F71RPN-J	F71GPN-J	F71BPN-J	F71WPN-J	F71RHPN-J	F71BHPN-J	F71WHPN-J
Power supply			12~24V DC ±10% Ripple 10% or less
Current consumption	NPN output		35mA or less
	PNP output		40mA or less
Output mode	Control output(※)	NPN output	Open collector output / Rating：Sink current 100mA (30V DC) or less / Residual voltage:1V or less
		PNP output	Open collector output / Rating：Source current 100mA (30V DC) or less / Residual voltage:2V or less
	Stability output(※)	NPN output	Open collector output / Rating：Sink current 100mA (30V DC) or less / Residual voltage:1V or less
		PNP output	Open collector output / Rating：Source current 100mA (30V DC) or less / Residual voltage:2V or less
Operation mode			Light ON / Dark ON selectable
Timer			On delay / off delay / disabled selectable (by switch) Delay time：about 40 ms fixed
Response time			With switch at 4 (tubo function disabled)：250µs or less With switch at 8 (tubo function disabled)：500µs or less				30µs or less (※1)
Light source (wavelength)			Red LED 680(mm)	Green LED (525mm)	Blue LED (470mm)	White LED	Red LED (680mm)	Green LED (525mm)	Blue LED (470mm)
Indicator			Operation indicator ：orang LED Stability(STB) indicator：green LED
Volume (VR)			SENS : Sensitivity adjustment volume (8-turn without stopper equipped with indicator)
Switch (SW)			Light ON / Dark ON selector switch : L.ON for Light ON, D.ON for Dark ON Timer selector switch : NOR. for ON / OFF operation, ON.D for on delay (40 ms), OFF.D for off delay (40 ms)
			Mutual Interference prevention / turbo mode selector switch(common) 8:Mutual Interference prevention for up to 8 units, turbo function enabled 4:Mutual Interference prevention for up to 4 units, turbo function enabled				----
Mutual Interference prevention			Provided				----
Short circuit protection			Provided
Material			Polycarbonate
Connection		Cable type	Attached cable (outer diameter : 4.8mm) 0.2mm2, 4 cores, 2m
		Connector type	M8 connector
Weight			Cable type：approx. 80g (including cables and mounting bracket) ; M8 connector type ：approx.25g
Accessory			Mounting bracket, screwdriver for adjustment, light shielding sticker(excluding H type), instruction manual

※ Detection can start when more than 0.5 seconds has passed after power up. If the load and this sensor use different power sources, be sure to turn on the sensor first. (※1) The detecting distance for high-speed response H type is reduced to roughly 30% of the ordinary type.
