Pressure sensor

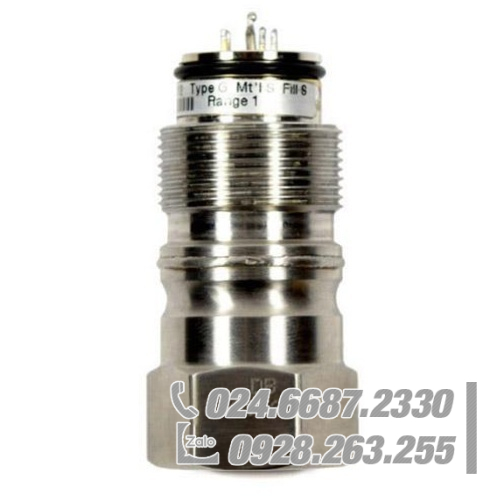

America Original SST pressure transmitter sensor for Rosemount 3051TG2A2B
| Gage (3051TG)(3) | Absolute (3051TA) | |
| 1 | -14.7 to 30 psi (-1,01 to 2,06 bar) | 0 to 30 psia (0 to 2,06 bar) |
| 2 | -14.7 to 150 psi (-1,01 to 10,34 bar) | 0 to 150 psia (0 to 10,34 bar) |
| 3 | -14.7 to 800 psi (-1,01 to 55,15 bar) | 0 to 800 psia (0 to 55,15 bar) |
| 4 | -14.7 to 4000 psi (-1,01 to 275,79 bar) | 0 to 4000 psia (0 to 275,79 bar) |
| 5 | -14.7 to 10000 psi (-1,01 to 689,47 bar) | 0 to 10000 psia (0 to 689,47 bar) |
| Transmitter output | |
| A(4) | 4–20 mA with Digital Signal Based on HART Protocol |
| F | FOUNDATION fieldbus Protocol |
Transmitter output
A(4) 4–20 mA with Digital Signal Based on HART Protocol H
F FOUNDATION fieldbus Protocol H
W(5) PROFIBUS PA Protocol H
X(6) Wireless (requires wireless options and engineered polymer housing) H
M(7) Low-Power 1-5 Vdc with Digital Signal Based on HART Protocol
Process connection style
2B 1/2–14 NPT Female H
2C(8) G½ A DIN 16288 Male (Range 1–4 only) H
2F(9) Coned and Threaded, Compatible with Autoclave Type F-250-C (Range 5 only)
61(9) Non-threaded Instrument flange (Range 1-4 only)
Housing material Conduit entry size
A Aluminum ½–14 NPT H
B Aluminum M20 × 1.5 H
J SST ½–14 NPT H
K SST M20 × 1.5 H
P(11) Engineered polymer No conduit entries H
D(12) Aluminum G½
M(12) SST G½
Wireless options
