Rosemount Pressure Transmitter

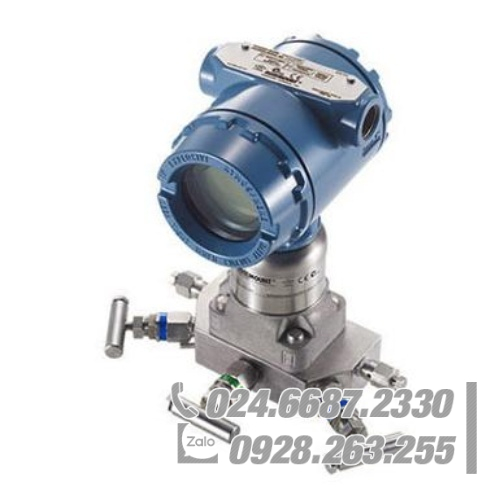

Rosemount 3051S Coplanar Pressure Transmitter



Output

  • Two-wire 4-20 mA is user-selectable for linear or square root output. Digital signal based on HART Protocol.

Range Limits

  • 3051S_CA: 0-0.167 to 0-4000 psia
  • 3051S_CD: 0-0.01 in H2O to 0-2000 psid
  • 3051S_CG: 0-8.3 in H2O to 2000 psig
  • 3051SAL: 0-8.3 in H2O to 0-300 psi
  • 3051S_TA: 0-0.3 to 0-10,000 psia
  • 3051S_TG: 0-0.3 to 0-10,000 psig



Mã: 1355-10190 Danh mục:

Rosemount Pressure Transmitter

Rosemount 3051S Coplanar Pressure Transmitter



• The 3051S Series offers the highest field performance and reliability

• The SuperModule® platform provides the foundation for built-in pressure, flow and level solutions

• The IEC 62591 (WirelessHART ™) protocol enables cost-effective installation

• Multivariable ™ technology for full compensation for quality and energy flow

• Advanced diagnostic capabilities range from process to host system

• Innovative DP flowmeter integrates primary components and transmitters into one device

• Electronic remote sensors and Tuned-System ™ components are available

For cost-effective optimized level measurement

2-Wire Differential rosemount 2088 pressure transmitter is

Reference Accuracy



3051S_CD/CG, Range 1:

Classic: +0.10% of span, For spans less than 15:1, ±[0.025 + 0.005(URL / Span)]% of span
Ultra: +0.09% of span, For spans less than 15:1, ±[0.015 + 0.005(URL / Span)]% of span
3051S_CD, Range 0:

Classic: +0.10% of span, For spans less than 2:1: ±0.05% of URL
Ultra: +0.09% of span, For spans less than 2:1: ±0.045% of URL
3051S_CA, Ranges 1-4:

Classic: +0.035% of span, For spans less than 10:1: ±[0.0065(URL / Span)]% of span
Ultra: +0.025% of span, For spans less than 10:1: ±[0.004(URL / Span)]% of span
3051S_CA, Range 0:

Classic: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span
Ultra: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span
3051S_TA/TG, Ranges 1-4:
