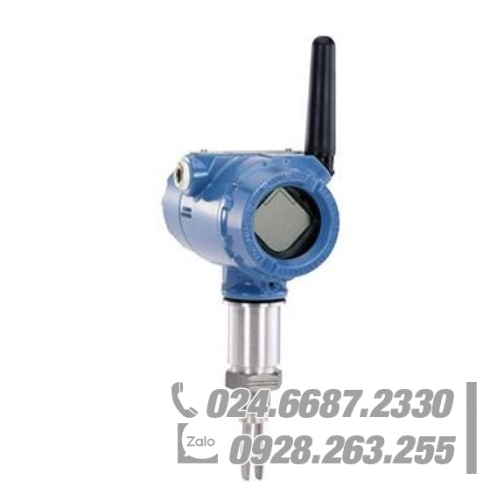

Rosemount 2160 Wireless Level Switch

Level Switch

Rosemount 2160 Wireless Level Switch

Features & Benefits

WirelessHART™ capabilities extend the full benefits of PlantWeb® to previously inaccessible locations
Designed for operation in temperature extremes of -94 to 500 °F (–70 to 260°C)
Suitable for most liquids
Virtually unaffected by flow, bubbles, turbulence, foam, vibration, solids content, coating, properties of the liquid, and product variations
No moving parts or crevices means virtually no maintenance
Electronic, enhanced self-checking and condition monitoring available via local handheld or AMS
Adjustable Switching Delay for turbulent/splashing applications
Small in size and weight, short fork length up to 118-in (3 m)
“Fast Drip” Fork Design gives quicker response time especially with viscous liquids
Intrinsically Safe certification option
Self-organizing network delivers information rich data with >99% data reliability
TUV tested and approved for overfill protection according to DiBt/ WHG regulations

Mã: 1355-10130 Danh mục: Rosemount

WirelessHART vibrating fork liquid level switch combines

Emerson’s wireless expertise with the Rosemount 2100 series

vibrating short fork technology.

It has all the same features as the wired level switches

in the Rosemount 2100 series, but without the complication

and cost of wiring.

Features include a complete range of process connections,

aluminum housing, a choice of wetted parts materials, dry-

to-wet and wet-to-dry switching functions, extended fork

lengths, and hazardous area approvals.

The Rosemount 2160 continuously performs instrument health

diagnostics of the fork and sensor.

These diagnostics can detect external damage to the forks,

internal damage to the sensor, excessive corrosion and over-

temperature.

The 2160 can withstand temperatures from -94 °F (-70 °C)

up to 500 °F (260 °C) and pressures to 1450 psig (100 bar g).

The Rosemount 2160 wireless vibrating fork liquid level

switch extends the full benefits of PlantWeb^® to previously

inaccessible or uneconomical locations due to the high cost

of wiring in a wide variety of challenging applications.

The Rosemount 2160 has been TUV tested and approved for

overfill protection according to the German DiBt/ WHG

regulations.

It is certified under safety devices for tanks and piping

related to water pollution control.

Forms a true wireless level monitoring and control solution

with the Rosemount 3308 wireless guided wave radar.
