Rosemount 2088 Absolute and Gage Pressure Transmitter / đo áp suất

Rosemount 2088 Absolute and Gage Pressure Transmitter / đo áp suất

Rosemount Pressure Transmitter

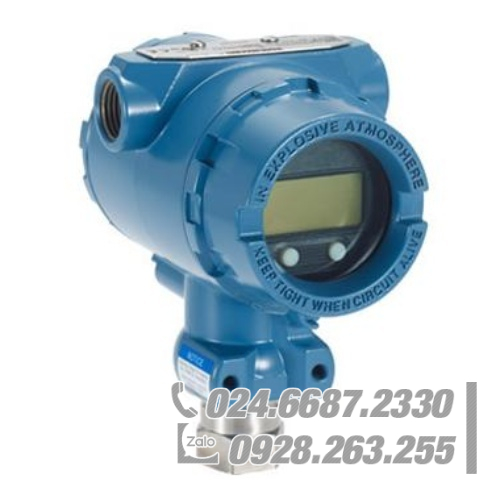

Rosemount 2088 Absolute and Gage Pressure Transmitter

Features

  • Absolute of gauge pressure measurement
  • For pressures up to 4000 psi
  • Accuracy: ±0.10%
  • Rangeability: 20:1
  • Integral manifold
  • Stainless steel or Hastelloy wetted materials
  • Smart communications
  • External push button zero and span capabilities
Mã: 1355-10100 Danh mục:

Rosemount  Pressure Transmitter

Rosemount 2088 Absolute and Gage Pressure Transmitter

The Rosemount 2088 pressure transmitter provides accurate,

stable, and reliable pressure measurement in difficult

applications.

The small compact design allows the Rosemount 2088 pressure

transmitter to be directly connected to a process –

providing a quick, easy, and cost effective installation.

The Rosemount 2088 pressure transmitter provides superior

measurement capability that can be used for almost any line

pressure or tank level applications.

The 2088 pressure transmitter is available in either gauge

or absolute pressure in pressure ranges to 4,000 psi (275

bar). It utilizes a solid-state, polysilicon pressure sensor

with a choice of either 316L or Hastelloy C-276 isolating

diaphragms.

The low oil fill of this design has very little temperature

effect and outstanding accuracy.

The Rosemount 2088 pressure transmitter is suitable for

almost any location in which value is a priority.

Its patented piezoresisitive silicon sensor, dual-

compartment housing, and compact, lightweight design adds up

to a reliable, convenient, an economical installation

wherever it is applied.

It is designed with reliability, long-term performance, and maintainability in mind.

The Rosemount 2088 pressure transmitter is available with a

wide range of options to provide solutions for virtually any application.

Specifications
Measurement Type
Gage, absolute
Accuracy
Up to 0.065% of span
Stability
Up to ±0.10% of Upper Range Limit (URL) for 3 years
Warranty
Up to 5-year limited warranty
Rangedown
Up to 50:1
Communication Protocol
4-20 mA HART®, 1-5 V Low Power HART®
Features
•
Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use
•
Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
•
Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
