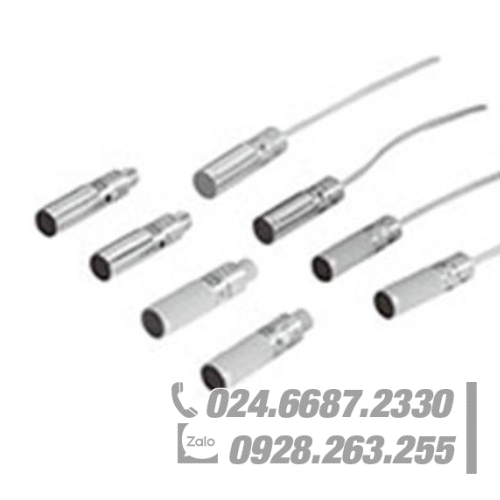

Omron Proximity sensor E2S series

Features:
□ 5.5mm ultra-small built-in amplifier

The longest detection distance of 2.5mm. Workpiece shaking can also be stable detection

Response frequency 1kHz

Low current consumption

species:
Ontology

DC 2-wire

Shape detection surface detection distance model
Action mode

NO NC
Unshielded
459_lu_1_1
Above 1.6mm E2S-W11 1M * 1 * 2 E2S-W12 1M
Front E2S-Q11 1M * 1 * 2 E2S-Q12 1M
Above 2.5mm E2S-W21 1M * 1 * 2 E2S-W22 1M * 2
Front E2S-Q21 1M * 1 * 2 E2S-Q22 1M * 2

* 1. Various types of frequencies that prevent mutual interference. Model is E2S- □□□ B. (Example: E2S-W11B)

* 2. Equipped with a robot (resistant to bending) wire type. Model is -R. (Eg E2S-W11-R 1M)
DC 3-wire

Shape detection surface detection distance output type model
Action mode

NO NC
Unshielded
459_lu_2_1
Above 1.6mm NPN E2S-W13 1M * 1 * 2 E2S-W14 1M
Front E2S-Q13 1M * 1 * 2 E2S-Q14 1M

Above 2.5mm E2S-W23 1M * 1 * 2 E2S-W24 1M * 2
Front E2S-Q23 1M * 1 * 2 E2S-Q24 1M * 2

Above 1.6mm PNP E2S-W15 1M * 1 E2S-W16 1M
Front E2S-Q15 1M * 1 E2S-Q16 1M

Above 2.5mm E2S-W25 1M * 1 E2S-W26 1M
Front E2S-Q25 1M * 1 E2S-Q26 1M

* 1. Various types of frequencies that prevent mutual interference. Model is E2S- □□□ B. (Eg E2S-W13B)

* 2. Equipped with a robot (resistant to bending) wire type. Model is -R. (Eg E2S-W13-R 1M)

Accessories (sold separately)

Mounting brackets

The sensor comes with a part of the home. Other mounting brackets can be ordered as needed.

Shape Model Number Remarks
459_lu_3_1
Y92E-C1R6 1 Accessories for E2S- □ 1 □□ (fixed with one screw)

459_lu_3_2
Y92E-C2R5 is an attachment for E2S- □ 2 □□ (fixed with a screw)

459_lu_3_3
Y92E-D1R6 E2S- □ 1 □□ With (with two screws)

459_lu_3_4

Y92E-D2R5 E2S- □ 2 □□ With (with two screws)

Rating:
DC 2-wire

Model Item E2S-W11
E2S-W12 E2S-Q11
E2S-Q12 E2S-W21
E2S-W22 E2S-Q21
E2S-Q22

Check the front of the front of the front

Detection distance 1.6mm ± 15% 2.5mm ± 15%

Set the distance 0 ~ 1.2mm 0 ~ 1.9mm

Should be less than 10% of the detection distance

Can detect the object magnetic metal (non-magnetic metal

detection distance is short.

See catalog “characteristic data”)

Standard test object iron 12 × 12 × 1mm iron 15 × 15 × 1mm

Response frequency above 1kHz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Leakage current below 0.8mA

Control the output switch capacitance of 3 ~ 50mA or less

Residual voltage 3V or less (load current 50mA, wire length 1m)

Indicator □ Type 1: Action display (red), setting display (green)

□ □ 2 type: action display (red)

Action mode (near detection of object) □□ Type 1: NO

□ □ Type 2: NC For details, refer to the timing diagram of “Input Output Section Circuit Diagram” on the catalog

* Response frequency is average.
Measurement conditions: the use of standard detection of

objects, the detection of objects as the standard interval

of 2 times the object, set the distance of 1/2 of the detection distance.
DC 3-wire

Model item E2S-W13
E2S-W14 E2S-Q13
E2S-Q14 E2S-W23
E2S-W24 E2S-Q23
E2S-Q24 E2S-W15
E2S-W16 E2S-Q15
E2S-Q16 E2S-W25
E2S-W26 E2S-Q25
E2S-Q26

The front of the front of the front of the front above the front

Detection distance 1.6mm ± 15% 2.5mm ± 15% 1.6mm ± 15% 2.5mm ± 15%

Set the distance 0 ~ 1.2mm 0 ~ 1.9mm 0 ~ 1.2mm 0 ~ 1.9mm
Should be less than 10% of the detection distance

Can detect the object magnetic metal (non-magnetic metal

detection distance is short. See catalog “characteristic data”)

Standard detection object iron 12 × 12 × 1mm iron 15 × 15 × 1mm iron 12 × 12 × 1mm iron 15 × 15 × 1mm

Response frequency above 1kHz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Current consumption below 13mA (DC24V, no load)

Control output switching capacitor NPN open collector output

50mA or less (DC30V or less) PNP open collector output 50mA or less (DC30V or less)

Residual voltage 1V or less (load current 50mA, wire length 1m)

Indicator action display (orange)
Action mode (near detection of object)

□ □ 3 type: NO

Type: NC

For details, see the timing diagram of the “Input Output Section Circuit Diagram” on the catalog

□ □ 5 type: NO

Type: NC
For details, see the timing diagram of the “Input Output Section Circuit Diagram” on the catalog

* Response frequency is average.

Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval of 2 times the object, set the distance of 1/2 of the detection distance.

specification

Item Model E2S- □□□
Protection circuit power reverse protection, surge absorption

Environmental temperature work: -25 ~ +70 ℃, save: -40 ~ +85 ℃ (no icing, condensation)

Environmental Humidity Range Operating: 35 to 90% RH, when stored: 35 to 95% RH (no condensation)

The temperature of the impact of -25 ~ +70 ℃ temperature range +23 ℃, the detection distance of ± 15%

The voltage is within ± 10% of the rated power supply voltage, the rated power supply voltage, the detection distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V) The charging unit is integral with the housing

Withstand voltage AC1,000V 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP67

Connection type Wire lead type (standard wire length 1m)
Quality (after packaging) about 10g

Material Housing Polyaryl
Attachment mounting bracket
