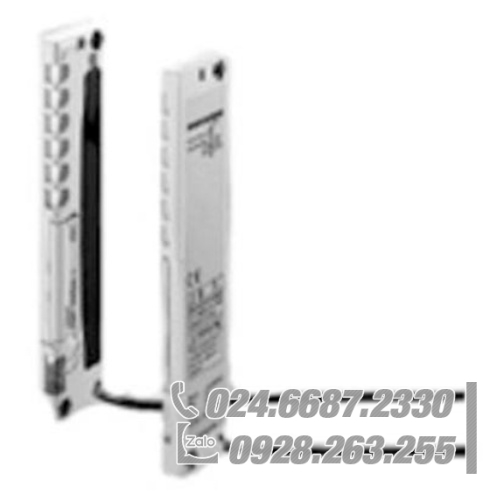

OMRON Photoelectric Sensors F3W-E series
Detection method
Project type on the radio type
F3W-E032A6 / A8 F3W-E032B6 / B8
Detection distance of 30 ~ 300mm
Optical axis clearance 25 mm
Number of optical axes 3
Detection range of 50 mm
Standard detection of objects opaque objects, φ28mm above
Light source (light emitting wavelength) Infrared light emitting diode (860nm)
Current consumption Projector: 40mA or less, Receiver: 40mA or less
Control output NPN / PNP open collector output
Load power: DC30V, load current: 100mA or less (residual voltage: 1.8V or less)
Dark-ON / Light-ON (optional)
Select command light input relay or open collector input
NPN input
Indicator light ON: Input voltage 0 ~ 2V
Indicator OFF: open circuit (leakage current 0.1mA or less)
PNP input
Response time work / reset: 100ms or less
Indicator Light Receiver Operating Indicator (Orange), Steady Indicator (Green), Picking Indicator (Orange)
Projector power indicator (green), cast light stop indicator (orange), picking indicator (orange)
Ambient temperature Operating temperature: -10 ~ 55 ° C
Storage temperature: -25 ~ 70 ° C (no freezing, no condensation)
temperature: 35% to 85% (no condensation)
Ambient Illumination Sunlight: Received Surface 10,000 lx, Incandescent: Received Surface 3,000 lx
Insulation resistance 20MΩ or more (DC500V)
Withstand voltage AC1,000V, 50 / 60Hz, 1min
Resistant to vibration (durable) 10 ~ 50Hz, double amplitude 1.5mm, X, Y, Z direction for 2 hours
Impact resistant (durable) 500 m / s2, X, Y, Z direction 3 times
Protection class IP62 (IEC60529)
Connection method pre-wiring
