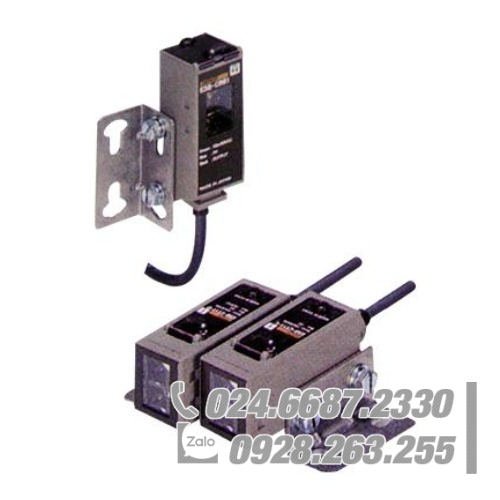

OMRON Photoelectric Sensors E3S-C series models:
E3S-CT11 2M E3S-CT11-M1J 0.3M E3S-CT61 2M E3S-CT61-M1J 0.3M E3S-CR11 2M E3S-CR11-M1J 0.3M E3S-CR61 2M E3S-CR61-M1J 0.3M E3S-CD11 2M E3S-CD12 2M E3S-CD11-M1J 0.3M E3S-CD12-M1J 0.3M E3S-CD61 2M E3S-CD62 2M E3S-CD61-M1J 0.3M E3S-CD62-M1J 0.3M
Detection of the type of reflection on the type of reflection
(With M.S.R. function) * 1 Diffuse reflection type
Model
Horizontal / E3S-CD11 (-M1J) Horizontal / E3S-CD11 (-M1J) Horizontal / E3S-CD11 (-M1J) Horizontal / E3S-CD12 (-M1J)
Vertical / E3S-CD61 (-M1J) Vertical / E3S-CD61 (-M1J) Vertical / E3S-CD61 (-M1J) Vertical / E3S-CD62 (-M1J)
Power supply voltage DC 10 ~ 30V (including fluctuation (p-p) 10%]
Current consumption below 50mA
(The emitter 25mA or less, the receiver 25mA or less) 40mA or less
Open collector output type (NPN / PNP output switch switching type)
ON / ON when light is ON ON switch
Protection circuit power supply reverse protection, output short circuit protection power supply reverse connection protection, output short circuit protection, to prevent interference
Response time action, reset: the following 1ms action, reset: the following 2ms
Sensitivity adjustment One-way rotary knob 2-turn No end knob (with indicator)
Protection structure IEC standard IP67 (internal standard oil), NEMA 6P (but only for indoor use) * 2
Connection type wire lead type (standard wire length 2m), connector relay type (standard wire length 300mm)
Quality (after packaging) about 270g (wire lead)
Material shell zinc die casting
The operating part covers the polyether sulfone
Lens part isobutylene resin
Mounting bracket Stainless steel (SUS304)
Accessories Mounting bracket (with screw), adjustment screwdriver, instruction manual, reflector (only retroreflective type)
