KEYENCE Proximity Sensors EG series

KEYENCE Proximity Sensors EG series high-accuracy positioning sensor.Positioning Sensor detecting slight position misalignment with high accuracy.

Features:

  • Non-contact, stable detection in wide temperature range
  • Hi/Lo tolerance detection with a single controller
  • Wide variety of sensor head types
Mã: 1351-10230 Danh mục:

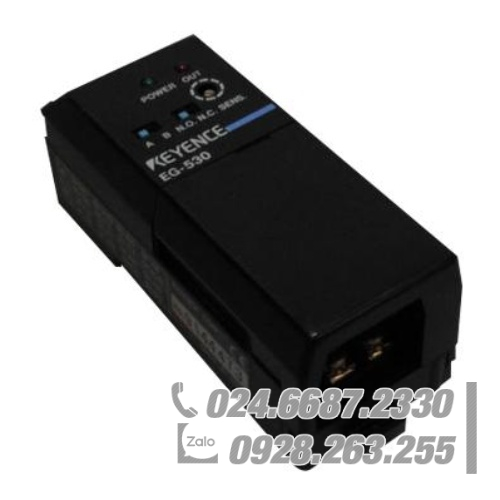

KEYENCE Proximity Sensors EG series EG-530

Model EG-530
Type DC
Sensitivity adjustment 15-turn trimmer
Function Operation mode N.O./N.C. (switch-selectable)
Operation mode External synchronization ―
Output Control output 1 (NPN) 100 mA max. (40 V max.) Residual voltage： 1 V max.
Control output 2 ―
Disconnection alarm output
(NPN)		 100 mA max.
(40 V max.) Residual
voltage： 1 V max.
Response
time (Relay contact)		 1 ms
―
OFF-delay time
Temperature characteristics 0.08%/°C*1
Rating Power voltage 12 to 24 VDC： 10% max.
Power consumption 100 mA max.
Environmental resistance Operating temperature range 0 to 50°C 32 to 122°F
Operating ambient humidity 35 to 85% RH (No condensation)
Vibration 10 to 55 Hz, 1.5 mm 0.06″ double amplitude in X, Y, and Z directions, 2 hours respectively
Weight Approx 75 g
*1 Above values obtained when the detecting distance is set at 50% of the maximum stable detecting distance.
