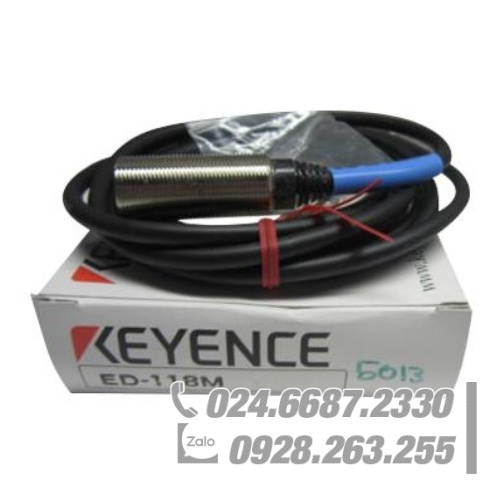

KEYENCE Proximity Sensors ED series ED-118M
Model
ED-118M
Type
Shielded
Shape
M18Threaded type
Detecting distance
5 mm 0.20″ ±15%
Detectable object
All metals *1
Standard target (aluminum, t=1 mm 0.04″)
18 x 18 mm 0.71″ x 0.71″
Hysteresis
15% max. of detecting distance
Response frequency
100 Hz
Operation mode
N.O.
Indicator lamp
Operation indicator: Red LED, Stable operation indicator: Green LED
Temperature characteristics
±20% max. of detecting distance at 23°C 73.4°F, within 0 to 50°C 32 to 122°F
Control output
NPN open collector 100 mA max. (40 V max.), Residual voltage: 1 V max.
Protection circuit
Reversed polarity, surge absorber
Rating
Power voltage
12 to 24 VDC±10%, Ripple (P-P) 10% max.
Current consumption.
35 mA or less
Environmental resistance
Enclosure rating
IP67
Operating temperature range
0 to 50°C 32 to 122°F, no freezing
Operating ambient humidity
35 to 95%, No condensation
Vibration
10 to 55 Hz, 1.5 mm 0.06″ double amplitude in X, Y, and Z directions, 2 hours
Shock resistance
1000 m/s2 3280.8′ in X, Y, and Z directions, 3 times respectively
Case material
Nickel-plated brass
Accessories
Screw nut x 2,
toothed washer x 1
Weight (including 2-m 6.6′ cable and nuts)
Approx 150 g
*1 When detecting ferrous metals, the detecting distance may decrease.
