KEYENCE Photoelectric Sensors LV series is high-power digital laser optics can detect long distances in harsh environments.

LV series use a focused beam for long distance detection
By using a laser light source, the spot remains constant at ultra-long distances, eliminating any doubts about the installation location.

Characteristic

High Power
waterproof
10 mm / 30 mm area (through type)
Analog monitor output (through type)

7 light colour combinations RGB fibreoptic sensor with 16-bit accuracy. Including a new UV sensor head, lustre detection head, 2-colour digital display and unique colour element detection.

SUPER HIGH POWER RGB sensor Industry’s best colour differentiation

High resolution amplifier for triple 16-bit calculation

New Lustre Detection Sensor Head

New UV sensor head for fluorescent Detection

Three detection modes for every target [Super I / C’ / C+I]



Mã: 1351-10040 Danh mục:

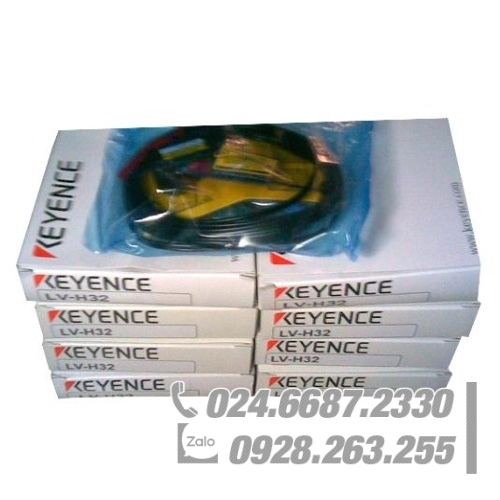

KEYENCE Photoelectric Sensors LV series LV-H32

model
LV-H32
Types of
Adjustable spot
FDA (CDRH) Part 1040.10
Class II
light source
Visible red semiconductor laser
wavelength
660 nm
Detection distance
FINE
30 to 250 mm
TURBO
30 to 500 mm
SUPER
30 to 1000 mm
Environmental tolerance
Ambient temperature
35 to 85% RH, non-condensing
Relative humidity
-10 to + 55 ° C without freezing
material
shell
Glass reinforced plastic * 1
lens cap
Acrylic * 2
weight
About 45 g
* 1 norbornene plastic or acrylic
* 2 LV-H32 and LV-H37 receivers are polyaryl compounds.
