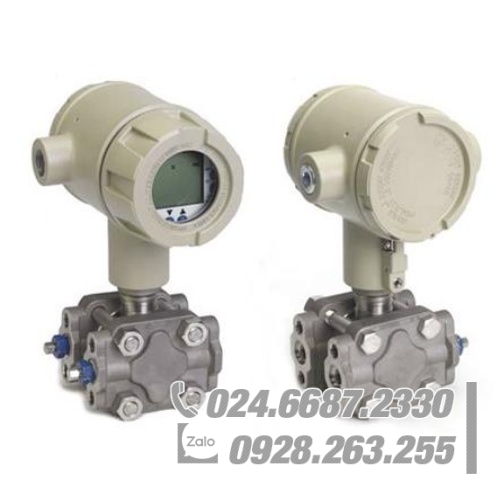

Honeywell STD120 Differential Pressure Transmitter / đo áp suất

Honeywell STD120 Differential Pressure Transmitter / đo áp suất

Differential Pressure Transmitter

Differential Pressure Transmitter ST 3000 Series 100 bring smart technology to a wide spectrum of measurement applications ranging from furnace combustion airflow rate to hydrostatic tank gauging. The differential pressure transmitters can be used with any primary flow element to provide proven, repeatable flow measurement.

ST 3000 Series 100 Differential Pressure Transmitters are ideal for critical process loops and high-value applications such as custody transfer and energy and material balances.

Five models of the transmitters are available for deployment:

  • STD110                      0 to 10 inH2O                        0 to 25 mbar
  • STD120                      0 to 400 inH2O                     0 to 1,000 mbar
  • STD125                      0 to 600 inH2O                     0 to 1,500 mbar
  • STD130                      0 to 100 psi                           0 to 7 bar
  • STD170                      0 to 3,000 psi                        0 to 210 bar

All models offer:

  • Accuracy of ± 0.0375%
  • Stability of ± 0.01% per year
  • Reliability of 470 years MTBF
  • Turndown ratio of 400:1
  • Lifetime warranty of 15 years.
Mã: 1350-11740 Danh mục:

Honeywell STD120 Differential Pressure Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
