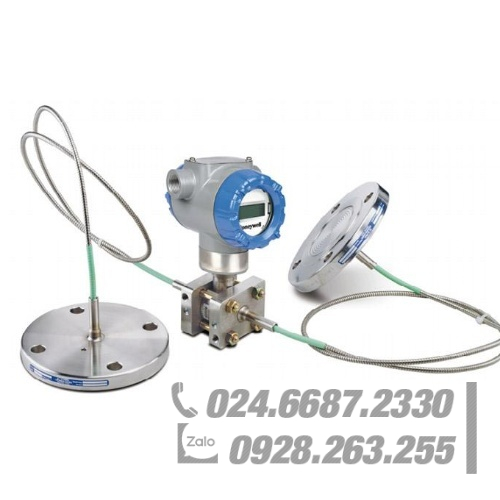

Honeywell ST 700 Remote Diaphragm Seal Pressure Transmitter / đo áp suất

Diaphragm Seal Pressure Transmitter

Diaphragm Seal Pressure Transmitter Honeywell ST 700 easily meets the most demanding application needs for pressure measurement applications.

ST 700 Remote Diaphragm Seal Transmitters (STR700) provide accurate measurement in a wide variety of applications involving corrosive or high temperature process fluids. Typical applications include level measurement in pressurized vessels in hydrocarbon processing and flow measurement of slurries and high viscosity process fluids in chemical plants.

Honeywell offers the following STR700 Remote Diaphragm Seal Transmitters:

    • Flush flange seals

    • Flange seal with extended diaphragm

    • Pancake seals

    • Sanitary seals

    • Chemical tee “taylor” wedge

    • Seals with threaded process connections

    • Saddle seals

    • Calibration rings

    • Stainless steel armor and pvc coated stainless steel armor capillaries

    • 2” Stainless steel nipples

    • Welded meter body

Two models are available with the following range and span limits:

  • STR73D            -100 to 100 psid (-7 to 7 bar)                1 to 100 psid (0.07 to 7 bar)

  • STR74G            -500 to 500 psig (-35 to 35 bar)            5 to 500 psig (0.035 to 35 bar)
