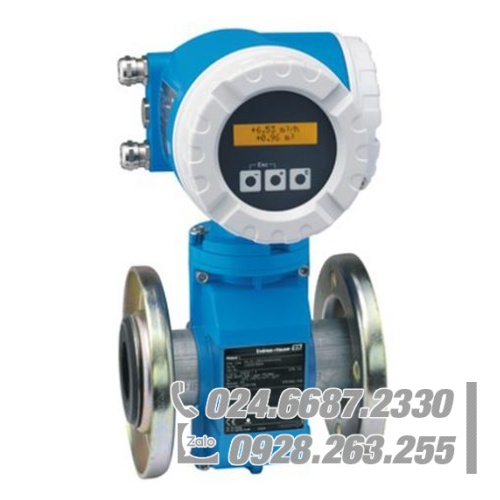

Electromagnetic Đồng hồ đo lưu lượng Endress Hauser Proline Promag 53P offers highest accuracy in the most complex and demanding measuring tasks.

Electromagnetic Đồng hồ đo lưu lượng Endress Hauser Proline Promag 53P offers highest accuracy in the most complex and demanding measuring tasks.

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 53P offers highest accuracy in the most complex and demanding measuring tasks.

Brand :Endress Hauser
Diameter：”DN 15…600，1/2″…24″
Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Range:9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
Pressure range: PN 16, Class 150
Process Temperature:Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Output: 4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency (passive)
Relay output
Switch output (passive)
Input:2 modular inputs:
Status input
0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv)

Mã: 1347-10790 Danh mục:

Benefits

Versatile applications – wide variety of wetted materials
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Quality – software for filling and dosing, density, electrode cleaning and also advanced diagnostics
Easy calculation – bidirectional totalizers
Automatic recovery of data for servicing
Maintenance-free – no moving parts

Field of application

The measuring principle is virtually independent of pressure, density, temperature and viscosity
Dedicated for chemical and process applications with corrosive liquids and high medium temperatures.
Device properties

Nominal diameter: max. DN 600 (24″)
All common Ex approvals
Liner made of PTFE or PFA
4-line backlit display with touch control
Device in compact or remote version
HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP
