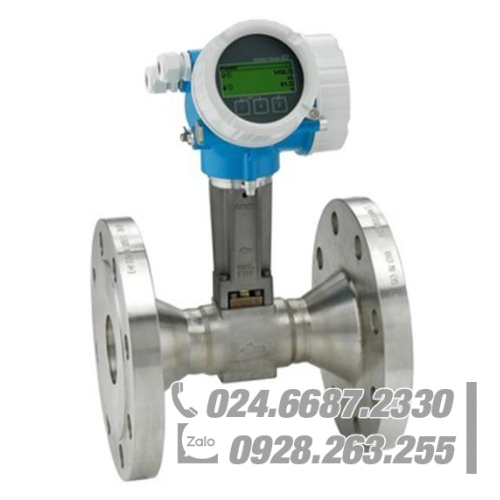

Endress Hauser Proline Prowirl R 200 Vortex Flow Meters

    Endress Hauser Proline Prowirl R 200 Vortex Flow Meters

    Vortex Flow Meters

    Vortex Flow Meters Prowirl R 200 offers industry-compliant two-wire technology for seamless integration into existing infrastructures and control systems.

    • Brand :Endress Hauser
    • Model:Endress Hauser Proline Prowirl R 200 Vortex Flow Meters
    • Diameter：DN 25 to 250 (1 to 10″)
    • Measurement error：Volume flow (liquid): ±0.75 %
      Volume flow (steam, gas): ±1.00 %
      Mass flow (liquid): ±0.85%
      Mass flow (steam, gas): ±1.7 %
    • Range: Liquid: 0.26 to 545 m3/h (0.15 to 321 ft3/min)
      depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
      Steam, gas: 3.6 to 7262 m³/h (2.12 to 4274 ft³/min
      depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)
    • Output:4‐20 mA HART (passive)
      4‐20 mA (passive)
      Pulse/frequency/switch output (passive)
    • Input:4‐20 mA (passive)
    Mã: 1347-10730 Danh mục:

    Endress Hauser Proline Prowirl R 200 Vortex Flow Metersr

    Benefits:
    Integrated temp. measuring for mass/ energy flow of saturated steam (opt.)
    Cost and time saving – no pipework modifications needed for line size reduction
    High availability – proven robustness, resistance to vibration, temperature shocks and water hammer
    No maintenance – lifetime calibration
    Convenient device wiring – separate connection compartment
    Safe operation – no need to open the device due to display with touch control, background lighting
    Integrated verification – Heartbeat Technology™

    Field of application:
    Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic).
    Device properties:
    Integrated diameter reduction by 1 or 2 line sizes
    Nominal diameter (mating pipe) up to DN 250 (10″)
    Installation length according to industry standard
    Display module with data transfer function
    Robust two-chamber housing
    Plant safety: worldwide approvals (SIL, Haz. area)
