Endress Hauser Proline Promass S 100 Coriolis mass Đồng hồ đo lưu lượng

Endress Hauser Proline Promass S 100 Coriolis mass Đồng hồ đo lưu lượng

mass flowmeter

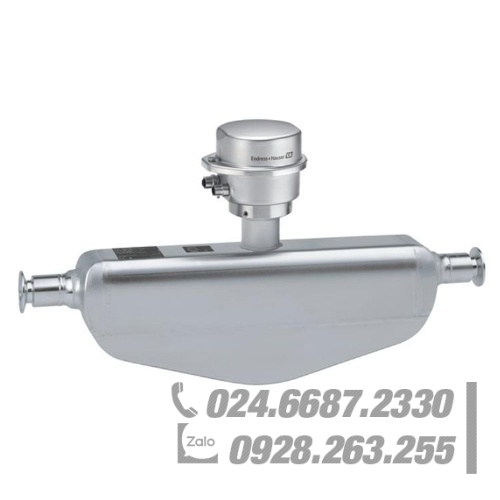

mass flowmeter Endress Hauser Proline Promass S 100 is easy-to-clean flowmeter with self-drainable single-tube system and an ultracompact transmitter.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass S 100 Coriolis mass flowmeter
  • Diameter：DN 8 to 50 (⅜ to 2″)
  • Measurement error：Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm³
  • Range:0 to 70 000 kg/h (0 to 2570 lb/min)
  • Pressure range:PN 40, Class 150, 20K
  • Process Temperature: –50 to +150 °C (–58 to +302 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None
Mã: 1347-10680 Danh mục:

Endress Hauser Proline Promass S 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Specially designed for applications requiring optimum
cleanability under hygienic conditions
Device properties
• Large range of hygienic process connections
• 3-A and EHEDG compliance
• Fast recovery from CIP/SIP
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Your benefits
• Reduced installation costs – fully self-drainable tube design
enables compact horizontal mounting
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Space‐saving transmitter – full functionality on smallest
footprint
• Time‐saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology™
