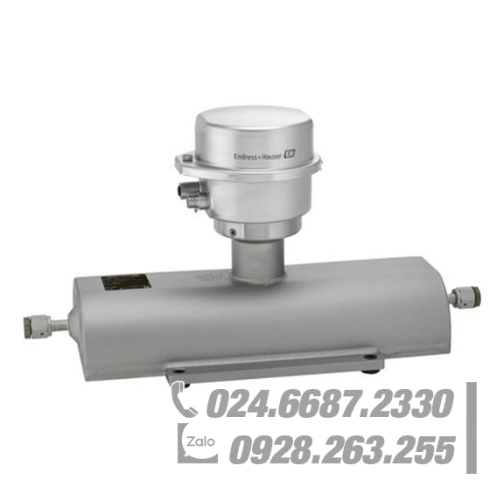

Endress Hauser Proline Promass A 100 Coriolis mass flow meter

Endress Hauser Proline Promass A 100 Coriolis mass flow meter

mass flow meter

mass flow meter can be used for high pressure and low pressure occasions, small flow of liquid and gas accurate measurement, with the existing minimum transmitter supporting the use of

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass A 100 Coriolis mass flowmeter
  • Diameter：DN 1 to 4 (¹⁄₂₄ to ¹⁄₈”)
  • Measurement error：Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm³
  • Range: 0 to 450 kg/h (0 to 16.5 lb/min)
  • Pressure range:PN 40, Class 300, 20K, 400 bar (5800 psi)
  • Process Temperature: –50 to +205 °C (–58 to +401 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None
Mã: 1347-10590 Danh mục:

mass flow meter Endress Hauser Proline Promass A 100

Benefits:
Highest process safety – self-drainable measuring tube design
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on the smallest footprint
Time-saving local operation without additional software and hardware – integrated web server
Integrated verification – Heartbeat Technology™

Field of Applications:
Measuring principle operates independently of physical fluid properties such as viscosity or density
Measuring accurately smallest quantities of liquids and gases for continuous process control.
Device properties
Nominal diameter: DN 1 to 4 (1/24 to 1/8″)
Process pressure up to 400 bar (5800 psi)
Medium temperature up to +200 °C (+392 °F)
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available
