Endress Hauser Proline Promass 84A Coriolis mass Đồng hồ đo lưu lượng

Endress Hauser Proline Promass 84A Coriolis mass Đồng hồ đo lưu lượng

mass flowmeter

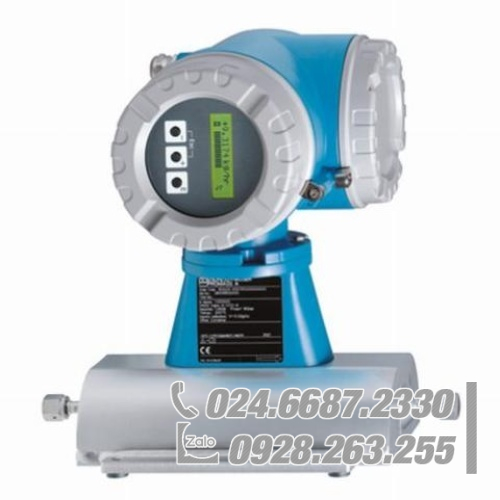

mass flowmeter Endress Hauser Proline Promass 84A single-tube flowmeter for smallest quantities with custody transfer functionality.

  • Brand : Endress Hauser
  • Model: Endress Hauser Proline Promass 84A Coriolis mass flowmeter
  • Measuring principle:Coriolis force
  • Diameter: “DN 1…4，1/24″…5/32”
  • Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
  • Pressure range： PN 16…400、Cl 150…600、JIS 10…63K
Mã: 1347-10550 Danh mục:

Endress Hauser Proline Promass 84A Coriolis mass flowmeter

Applications
The Coriolis measuring principle operates independently of the physical fluid properties, such as viscosity and density.
• Extremely accurate, verified measurement of liquids (other than water) and for gases under high pressure (>100 bar)
• Process pressures up to 350 bar
• Mass flow measurement up to 2200 t/h
Approvals for custody transfer:
• PTB, NMi, METAS, BEV, NTEP, MC
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS, IECEx, NEPSI
Approvals in the food industry/hygiene sector:
• 3A, FDA, EHEDG
Connection to process control system:
• HART, MODBUS
Relevant safety aspects:
• Secondary containment (up to 100 bar), Pressure
Equipment Directive, AD 2000
• Purge connections or rupture disk (optional)
