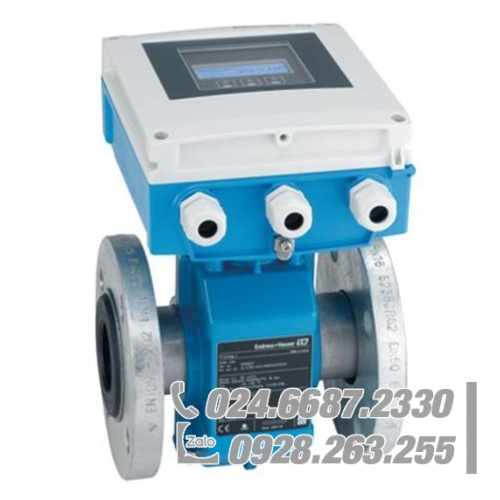

Endress Hauser Proline Promag L400 Electromagnetic Đồng hồ đo lưu lượng

Endress Hauser Proline Promag L400 Electromagnetic Đồng hồ đo lưu lượng

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promag L400 Electromagnetic Flowmeter
  • Diameter：Lap joint flange, lap joint flange, stamped plate: DN 25 to 300 (1 to 12″)
    Fixed flange: DN 350 to 2400 (14 to 90″)
  • Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
  • Range:9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
  • Pressure range: PN 16, Class 150
  • Process Temperature: Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
    Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
    Liner material PTFE: –20 to +90 °C (–4 to +194 °F)F)
  • Output: 3 ouputs:
    0‐20 mA/4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
    Pulse/frequency output (passive)
    Switch output (passive)
  • Input:Status input
Mã: 1347-10340 Danh mục:

Endress Hauser Proline Promag L400 Electromagnetic Flowmeter

Application
• The measuring principle is practically independent of pressure, density, temperature and viscosity
• Perfectly suitable for standard applications in the water and wastewater industry
Device properties
• Up to 30 % less sensor weight
• Nominal diameter: DN 25 to 2400 (1 to 90″)
• Maximum reduced installation length to DVGW/ISO
• Transmitter housing made of durable polycarbonate or aluminum
• Same housing concept for compact/remote version
• Integrated data logger for measured values monitoring

Your benefits
• Reduced installation costs – flexible mounting by one‐of‐akind lap‐joint flange concept (DN < 350/14″)
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Safe operation – no need to open the device due to display with touch control, background lighting
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology™
