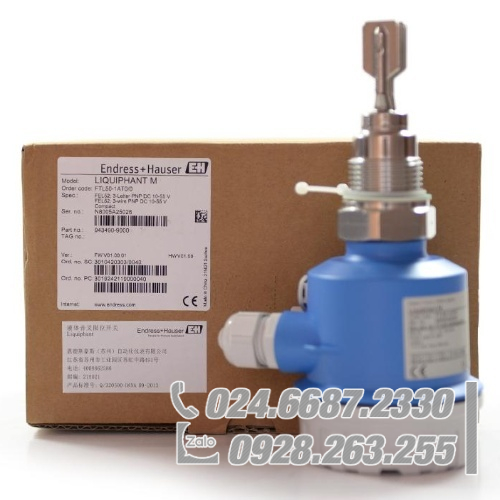

Endress Hauser Liquid Level Switch liquiphant FTL 50

Features and Benefits
• Large selection of process
connections: universal use
• Installs in threaded openings as
small as 3/4” or in flanges as small
as 1”
• Wide variety of electronics, e.g.
DPDT relay, 4 to 20 mA switch,
NAMUR, PFM signal output,
transistor: the right connection for
every process control system
• No calibration: quick, low-cost
start-up
• No mechanical moving parts: no
maintenance, no wear, economical
long operating life
• Monitoring of fork for damage:
guaranteed operation

Mã: 1347-10290 Danh mục:

Endress Hauser Liquid Level Switch liquiphant FTL 50

Applications
The Liquiphant M is a level limit switch
for use in all liquids
• With temperatures between -40° and
+ 300°F (-40° to + 150°C)
• Pressures up to 930 psig (64 bar)
• Viscosity up to 10,000 cP

Versatile Selection
• FTL 50: compact design, ideal for
mounting in pipes
• FTL 51: extension tube for up to
115 inches maximum (3 m)
• FTL 50 H, FTL 51 H: with polished
fork and easy to clean process
connections and housings for food
and pharmaceutical applications
• Density from 0.5 SGU
The function is not affected by flow,
turbulence, bubbles, foam, vibration, bulk
solids content or build-up. The
Liquiphant M is thus the ideal replacement
for float switches, gap switches,
capacitance and other technologies.
