Electromagnetic Flowmeter

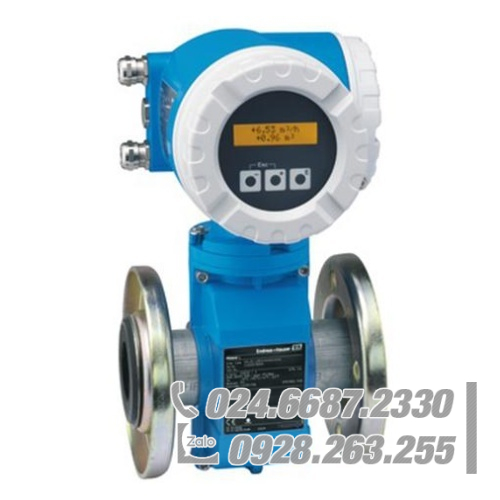

Electromagnetic Flowmeter Endress Hauser Proline Promag 53L offers highest accuracy in the most complex and demanding measuring tasks.

Brand :Endress Hauser
Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 53L
Diameter：Lap joint flange; lap joint flange, stamped plate: DN 25 to 300 (1 to 12″)
Fixed flange: DN 350 to 2400 (14 to 90″)
Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Range:9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
Pressure range: PN 16, Class 150
Process Temperature:Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Output: 4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency (passive)
Relay output
Switch output (passive)
Input:2 modular inputs:
Status input
0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv)

Mã: 1347-10240 Danh mục:

Endress Hauser Electromagnetic Flowmeter Proline Promag 53L

These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply.
Detailed information is provided in the Operating Instructions
and the additional documentation on the CD-ROM supplied.
The complete device documentation consists of:
• These Brief Operating Instructions
• Depending on the device version:
– Operating Instructions and the Description of Device Funct.
– Approvals and safety certificates
– Special safety instructions in accordance with the approvals
for the device (e.g. explosion protection, pressure
equipment directive, etc.)
– Additional device-specific information
