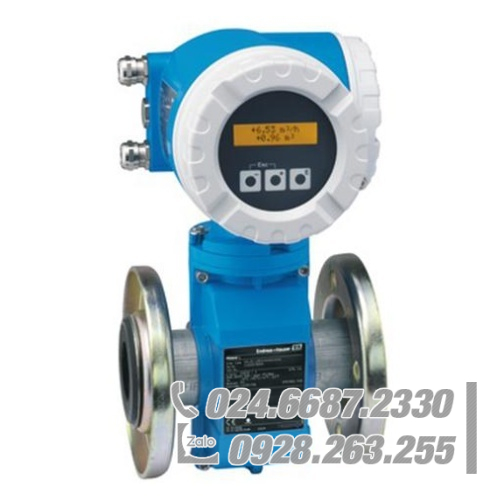

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag 50E

Endress Hauser Electromagnetic Đồng hồ đo lưu lượng Proline Promag 50E

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 50E offers accurate measurement of liquids for a wide range of standard applications.

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag 50E
  • Diameter：DN 15 to 600 (½ to 24″)
  • Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
  • Range:4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
  • Pressure range: PN 40, Class 150, 20K
  • Process Temperature: –10 to +110 °C (+14 to +230 °F)
  • Output: 3 outputs:
    0‐20 mA (active)/4‐20 mA (active/passive)
    Pulse/frequency output (passive)
    Switch output (passive)
  • Input:Status input
Mã: 1347-10150 Danh mục:

Endress Hauser Electromagnetic Flowmeter Proline Promag 50E

Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• Fully suitable for basic applications in the chemical and process industry
Device properties
• Nominal diameter: max. DN 600 (24″)
• Ex approvals for Zone 2
• Liner made of PTFE
• 2-line backlit display with push buttons
• Device in compact or remote version
• HART, PROFIBUS DP/PA

Your benefits
• Cost-effective sensor – ideal solution for basic requirements
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Fast commissioning – application-specific Quick Setups
• Safe operation – display provides easy readable process information
• Fully industry compliant – IEC/EN/NAMUR
