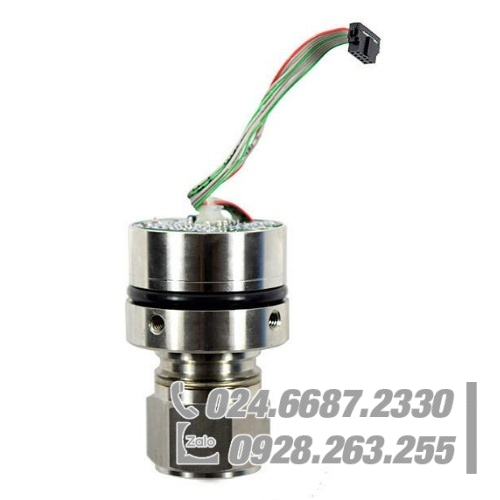

Pressure sensor/ Cảm biến áp suất SUS316L A differential diaphragm capsule Pressure sensor/ Cảm biến áp suất. Yokogaw sensor for EJA510A and EJA530A

pressure sensor

pressure sensor SUS316L A differential diaphragm capsule pressure sensor. Yokogaw sensor for EJA510A and EJA530A

Measurement span

(capsule)

L……….. 0.5 to 10 kPa {50 to 1000 mmH 2 O} {2 to 40 inH 2 O} {5 to 100 mbar}
M……….. 1 to 100 kPa {100 to 10000 mmH 2 O} {4 to 400 inH 2 O} {10 to 1000 mbar}
H………… 5 to 500 kPa { 0.05 to 5 kgf/cm 2 } {20 to 2000 inH 2 O} {50 to 5000 mbar}
V………… 0.14 to 14 MPa { 1.4 to 140 kgf/cm 2 } *1  {20 to 2000 psi} {1.4 to 140 bar}
Wetted parts

material * 2



S #……..

H #……..

M #……..

T #………

A #……..
D #……..
B #………

[Body] *2            [Capsule]             [Vent plug]

SCS14A               SUS316L *5         SUS316 *13

SCS14A               Hastelloy C-276 *6*12    SUS316 *13

SCS14A               Monel *6              SUS316 *13

SCS14A               Tantalum *6          SUS316 *13

Hastelloy C-276 equivalent *3  Hastelloy C-276 *6*12   Hastelloy C-276 *12

Hastelloy C-276 equivalent *3  Tantalum *6  Hastelloy C-276 *12

Monel equivalent *4    Monel *6            Monel

Mã: 1344-12230 Danh mục:
