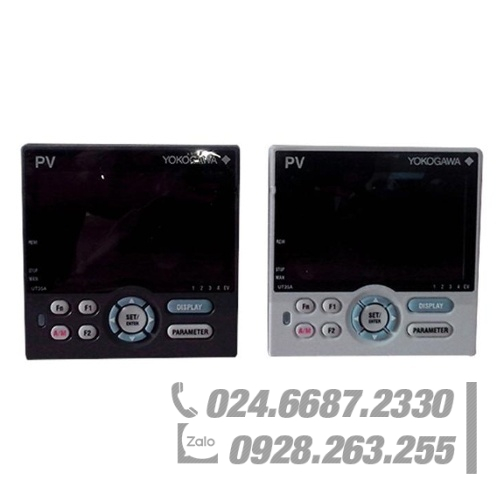

Yokogawa UT75A Temperature Controller/ Bộ điều khiển nhiệt độ

    Yokogawa UT75A Temperature Controller/ Bộ điều khiển nhiệt độ

    • Place of Origin: Japan
    • Brand Name: Yokogawa
    • Model Number: UT75A
    • Product Name: Yokogawa UT75A Temperature Controller
    • Safety: good
    • Quality: International Standard for Yokogawa UT75A Temperature Controller
    • Accuracy: High Accuracy
    • Model: UT75A
    Mã: 1344-11750 Danh mục:

    UTAdvanced UT75A
    The Enhanced Performance, Usability, and Flexibility Meet the Advanced Control Needs in a Wide Variety of Applications.
    Enhancing Productivity by Managing a Variety of Recipes
    Since CC-Link, Profibus, and DeviceNet are supported, it is easy to link to a PLC that manages recipe
    Program pattern consists of up to 20 segments
    2-loop program pattern can be operated
    Increasing yield by managing a variety of recipes
    Switching between 20 Recipes
    Program pattern operatio
    Easy to switch between recipes with a PLC
    Reducing Engineering Costs and Peripheral Dev
    CC-Link, Profibus, and DeviceNet are supported (optional)
    Complex I/O offset calculation and alarm sequence control can be accomplished using a ladder program
    Multi-line ladder programs such as numerical calculation can be turned into a single line using a custom ladder instruction.] Simplifying ladder programs
    External calculators and sequence control circuits (relay, timer, etc.) can be reduced
    Communication with a PLC is possible without using any program
    Protecting Knowledge of UsersInheriting and Enhancing the UT750
    Multi-line ladder programs such as numerical calculation can be simplified into a single line using a custom ladder program
    Custom ladder programs are securely managed using passwords
    Custom arithmetic expressions can be created using a ladder program
    2-loop control with a single controller
    2-loop synchronous and independent operation is available
    Program pattern operation and constant value operation are available for 2-loop control
    A variety of arithmetic instructions and large capacity ladder programs
    15 basic instructions and 111 application instructions
    Ladder program capacity up to 1,000 steps
    Advanced arithmetic instructions are available
    Square root, exponential, and logarithmic calculations are available
    Temperature/humidity and CP calculations are available
    Reducing Downtime
    Parameters can be set on other controllers just by copying them
    Parameters can be set before mounting the controller to the panel
    Parameters can be set without power supply for the controller
