General

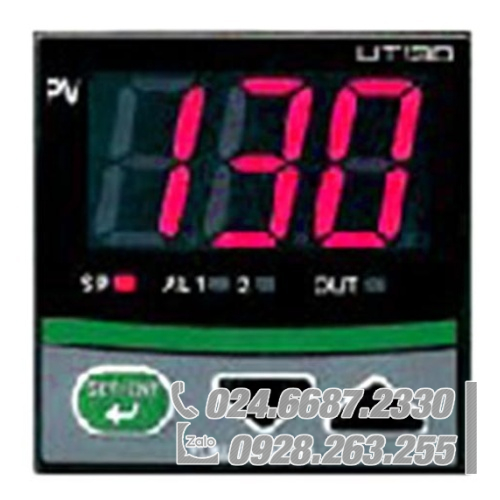

The UT130 Temperature Controller (1/16 DIN size) is a compact, economical, easy-to-use temperature controller that comes with an easy-to-see large display. The UT130 has a dynamic auto tune and the “SUPER” overshoot suppress function as standard function. The heating/cooling control and communication function are available as optional features.
-Small, space-saving 1/16 DIN package, 48 (W) x 48 (H) x 100 (D) (mm)
-Large 3-digit LED display Dramatic increase in readability thanks to large LED display with 17.5 mm height digits
-IP65 splash-proof and dust-proof designed front panel
-Universal input for Thermocouple and RTD signals
-Optional heating/cooling control capability
-Optional heater burnout alarm and two alarm output relays
-Standard universal power supply (100 V to 240 V AC) and optional 24 V AC/DC power supply
-Optional RS485 communication function, MODBUS, PC-Link & Ladder protocols are supported
-RoHS Compliant
Models and Suffix Codes
|
Model |
Suffix code |
Description |
|||
| UT130 | Temperature controller | ||||
| Control output for standard type (or for heating) | –R
–V |
Relay output (time-proportional PID or on/off control)
Voltage pulse output (time-proportional PID) |
|||
|
Control output for cooling |
N
R V |
No cooling output (standard type)
Relay output (time-proportional PID or on/off control) Voltage pulse output (time-proportional PID) |
|||
|
Option |
/AL
/HBA
/RS
/V24 |
Alarm outputs (2 points) (Note1)
Heater disconnection alarm (includes optional /AL function) (Note1) (Note2) Communication function (Note2) (Note3) Power Supply 24V DC / 24V AC |
|||
Note1: /AL option cannot be specified when /HBA option is specified. /HBA option already includes the /AL option.
Note2: /HBA option cannot be specifed at the same time.
Note3: When specifying the /RS option, be sure to order the required number of copies of Communication Functions Instruction Manual
