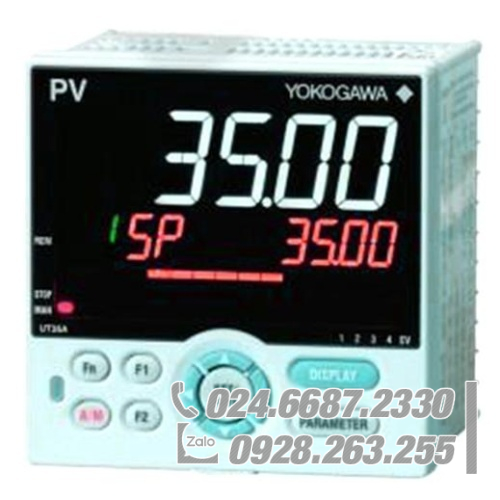

Yokogawa UP35A program controller

    Yokogawa UP35A program controller

    • Place of Origin: Japan
    • Brand Name: Yokogawa
    • Model Number: UP35A
    • Product Name: Yokogawa UT35A Temperature Controller
    • Safety: good
    • Quality: International Standard for Yokogawa UT35A Temperature Controller
    • Accuracy: High Accuracy
    • Model: UT35A
    Mã: 1344-11640 Danh mục:

                           Overview

                                   UP35A Program Controller

    The UP35A program controller employs an easy-toread, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UP35A also support open networks such as Ethernet communication.

    Features

    UP35A Program Controller

    • A 14-segment, active (PV display color changing function) color LCD display is employed. Two five-digit, high-resolution displays are possible. Alphabet letters can be displayed in an easy-to-read manner. The guide display shows parameter names. • Easy to operate Navigation keys (SET/ENTER and Up/Down/Left/ Right arrow keys) are employed to facilitate making settings.
    • 65 mm depth The small depth enables the mounting in a thin and small instrumented panel.
    • Ladder sequence function is included as standard. This function allows for creating a simple sequence control. Dedicated LL50A Parameter Setting Software (sold separately) allows for performing programming using a ladder language.
    • Various built-in open network functions such as Ethernet are available. Easy connection with various vendors’ PLCs is possible.
    • Quick setting function Setting only the minimum necessary parameters for operation is possible. (For single-loop control only)
    • Equipped with a multitude of functions Universal I/O and eight control modes (cascade control, etc) are included as standard. PID control, heating/cooling control, feed forward control, etc. are available.



    All Models

    UP35A Program Controller

    UP35A-000-10-00,UP35A-000-11-00,UP35A-001-10-00,UP35A-001-11-00,UP35A-002-10-00,UP35A-002-11-00,UP35A-003-10-00,UP35A-003-11-00,UP35A-004-10-00,UP35A-004-11-00,UP35A-005-10-00,UP35A-005-11-00//
    UP35A-010-10-00,UP35A-010-11-00,UP35A-011-10-00,UP35A-011-11-00,UP35A-012-10-00,UP35A-012-11-00,UP35A-013-10-00,UP35A-013-11-00,UP35A-014-10-00,UP35A-014-11-00,UP35A-015-10-00,UP35A-015-11-00//

    UP35A-100-10-00,UP35A-100-11-00,UP35A-101-10-00,UP35A-101-11-00,UP35A-102-10-00,UP35A-102-11-00,UP35A-103-10-00,UP35A-103-11-00,UP35A-104-10-00,UP35A-104-11-00,UP35A-105-10-00,UP35A-105-11-00//
    UP35A-110-10-00,UP35A-110-11-00,UP35A-111-10-00,UP35A-111-11-00,UP35A-112-10-00,UP35A-112-11-00,UP35A-113-10-00,UP35A-113-11-00,UP35A-114-10-00,UP35A-114-11-00,UP35A-115-10-00,UP35A-115-11-00//

    UP35A-200-10-00,UP35A-200-11-00,UP35A-201-10-00,UP35A-201-11-00,UP35A-202-10-00,UP35A-202-11-00,UP35A-203-10-00,UP35A-203-11-00,UP35A-204-10-00,UP35A-204-11-00,UP35A-205-10-00,UP35A-205-11-00//
    UP35A-210-10-00,UP35A-210-11-00,UP35A-211-10-00,UP35A-211-11-00,UP35A-212-10-00,UP35A-212-11-00,UP35A-213-10-00,UP35A-213-11-00,UP35A-214-10-00,UP35A-214-11-00,UP35A-215-10-00,UP35A-215-11-00//

    .
