    Yokogawa TY520 Multimeter/ Đồng hồ đo vạn năng

    • Place of Origin: Japan
    • Brand Name: Yokogawa
    • Model Number: TY520
    • Product Name: Yokogawa TY520 Multimeter
    • Safety: good
    • Quality: International Standard for Yokogawa TY520 Multimeter
    • Accuracy: High Accuracy
    • Model: TY520
    Mã: 1344-11590 Danh mục:

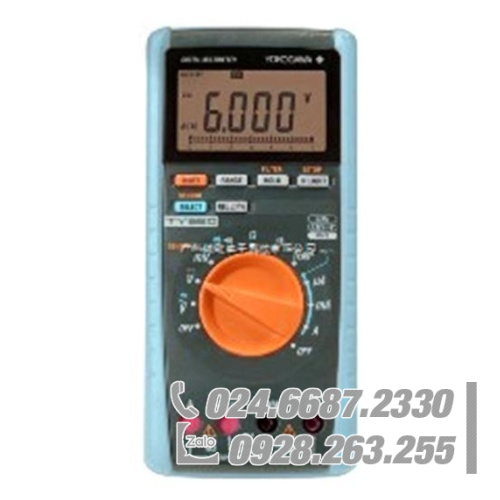

    Yokogawa TY520 Multimeter



    3.5-digit (6000-count dual display, 31-segment bar graph display), RMS type Measurement Functions : Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, Logging-mode memory for 1600 data (TY530 only)



    Features : Category IV 600V, Category III 1000V, USB Communication function, Closed Case Calibration (User calibration function).



    Measurement Function DC Voltage, AC voltage, DC current, AC current, resistance, frequency, temperature, capacitance, continuity check, diode test For AC voltage/current, RMS/MEAN detection can be switched.
    Low-pass filter can be switched on/off
    Additional Functions Data hold/auto hold/range hold, maximum/minimum/average values, resistance, relative and percentage value calculation, memory function, communication function, logging-mode memory, auto power off, backlight
    Display 3.5-digit LCD: 7-segment
    Digital display: Main display; [6000] counts
    Bar graph display: 31-segment
    Polarity indicator : “-” appears automatically when the polarity is negative
    Overrange indicator: “OL”
    Features
    • High Precision
    • Basic accuracy 0.09%
    • True RMS measurement
    • Ensured Field Site Safety
    • Conforms to safety standards EN61010-1, 1000V CAT III, 600V CAT IV
    • Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
    • New Functions for Yokogawa Middle Class DMMs
    • Current direct reading function provided by current clamp sensor (optional)
    • Low-pass Filter (LPF)
    • Logging-mode memory for 1600 data
    • USB communication, application software (Optional DMM communication package) TY530 only
    • Closed Case Calibration
    • 3-year Warranty
