Based on Yokogawa’s track record and years of experience, a comprehensive range of products has been produced to provide solutions best suited to individual applications.
The PH8EHP pH sensor and PH8HH holder perform reliable measurement of pH for high purity water used in boilers and semiconductor process applications.
Features
| * | The dedicated holder provides solutions to problems that arise when measuring high-purity water. |
| * | Combined with the PH450G and PH202 pH/ORP analyzers, it compensates for the effect of fluid temperature. |
Specifications

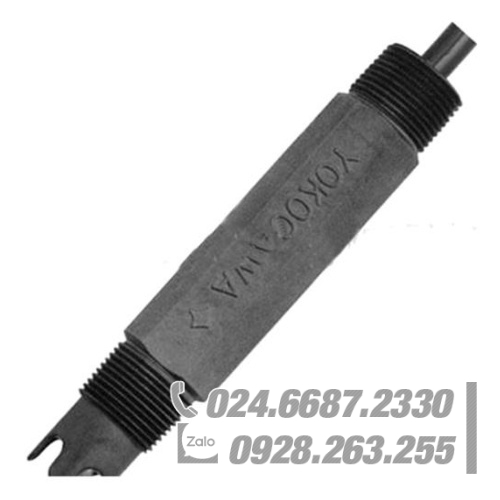

1. pH sensor PH8EHP for High Purity Water
| Measuring temperature | 0 to 50°C |
| Measuring pressure | Atmospheric pressure |
| Temperature compensation sensor | Pt1000 |
| Weight | Approx. 0.4 kg |
2. Holder PH8HH for High Purity Water
| Material | Acrylic resin, 316SS, chloroprene rubber |
| Process connections | Inlet; Rc1/4 or 1/4NPT (F) Outlet; Rc1/2 or 1/2NPT (F) |
| Mounting method | 50A (2-inch) vertical or horizontal pipe mounting or wall mounting (Specify mounting bracket) |
| Weight | Approx. 1.7 kg |
